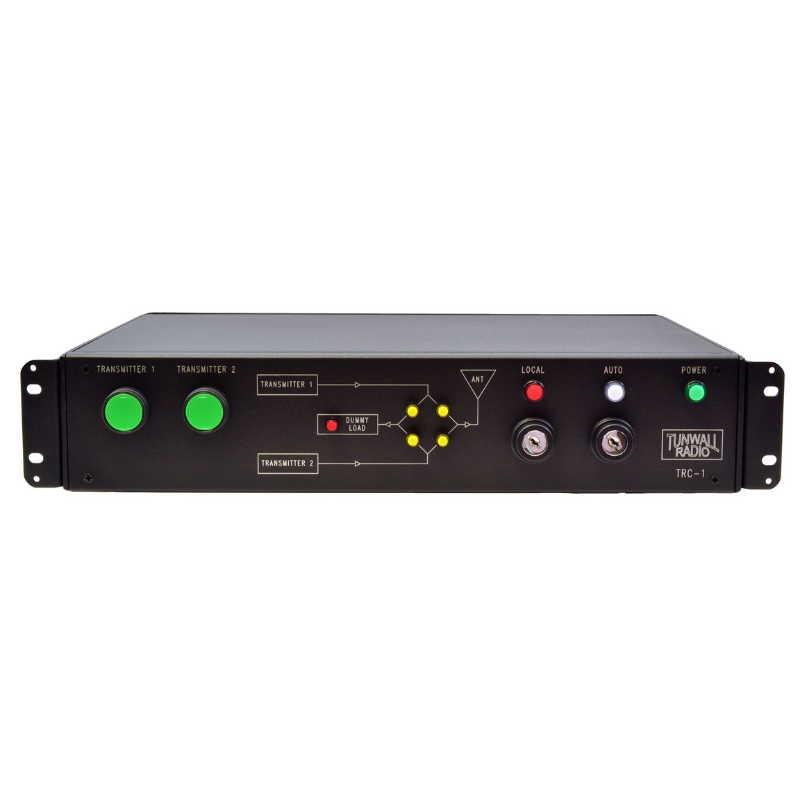

Tunwall TRC-1 Single Switch Controller

Description

The Tunwall TRC-1 Single Switch Controller is a RF component built for broadcast engineers building or upgrading a transmission site. Tunwall Radio engineered it to deliver efficient, low-loss RF performance, day in and day out.

Key Features

• The Tunwall Radio TRC-1 controller is an FM or AM non-directional controller
• It is designed for one coaxial switch or 120V AM contactor, two transmitters, one antenna and a dummy load
• The key switch selected auto function will transfer to the aux transmitter upon failure of the main transmitter
• The dummy load ready light works with the load interlock logic for automatic load protection
• The pre-programmed PLC (programmable logic controller) in the TRC-1 provides control and logic for the coaxial switch and transmitters

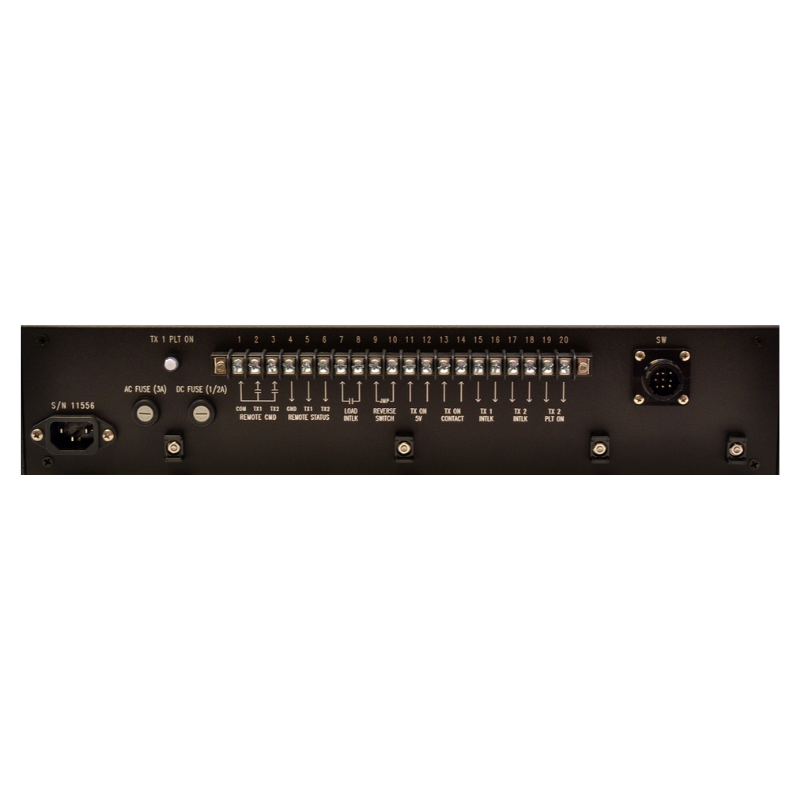

• The coaxial switch plugs into a 9-pin AMP connector on the controller, and transmitter and remote control connections are made to barrier strip terminals
• The TRC-1 has automatic plate on for transmitter 2 when auto transfer is enabled

Specifications & Details

This is enough automatic control for many stations. For additional plate control, see the TRC-1P. The TRC-1 is compatible with all standard coaxial switches, and can also be used with RF contactors for non-directional AM stations.

Part number / SKU: TUN-TRC-1  ·  Manufacturer: Tunwall Radio
