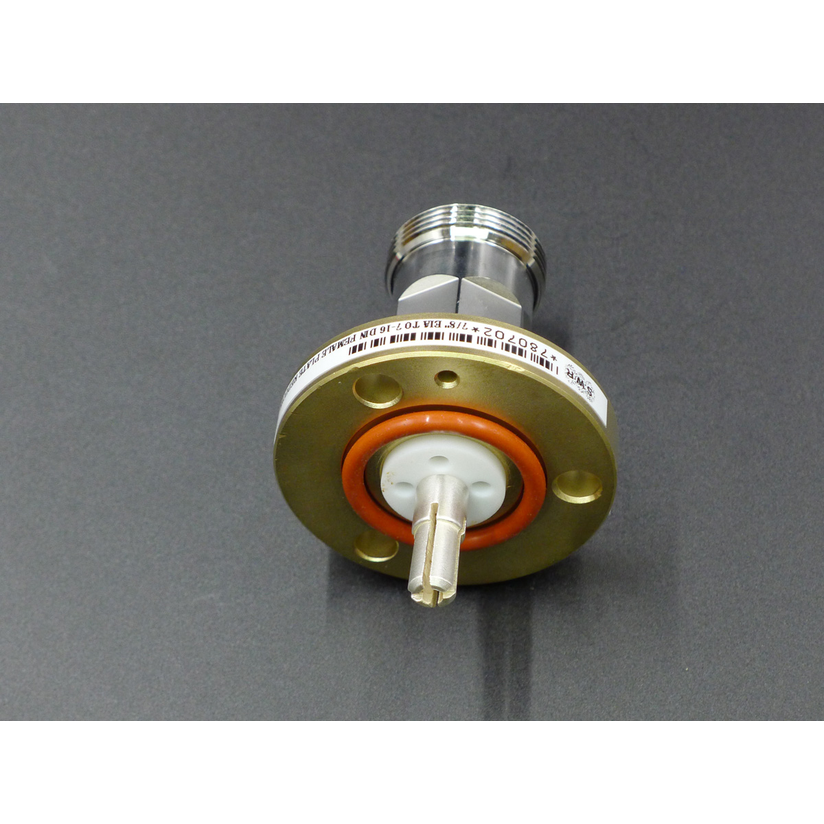

SWR 780702 7/8" Eia Male to 7-16 Din Female Plate Reducer

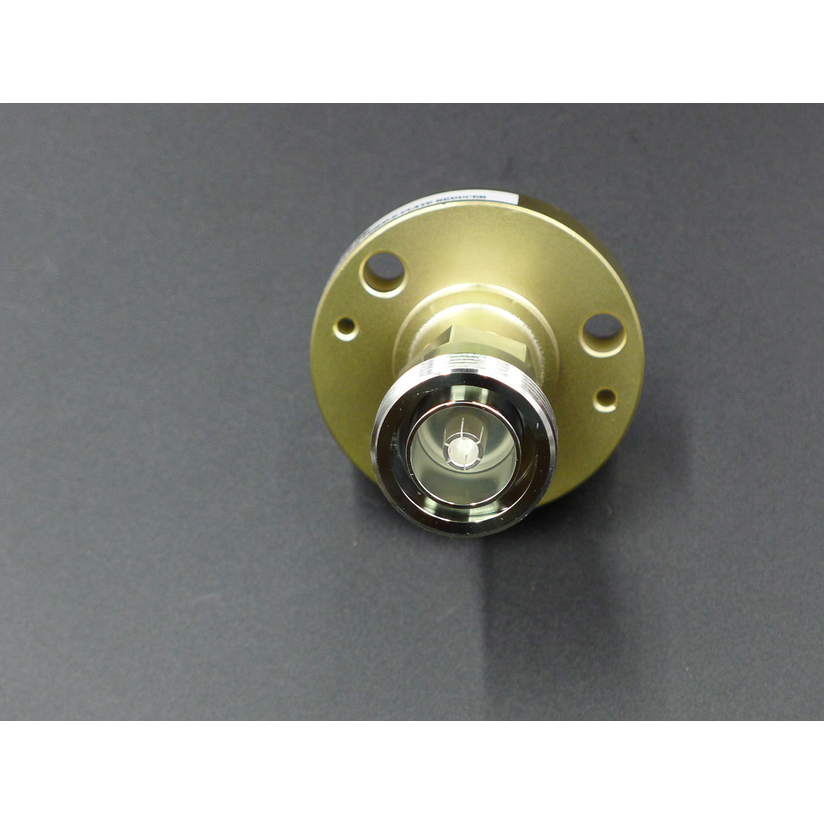

SWR 780702 7/8" Eia Male to 7-16 Din Female Plate Reducer - Image 2

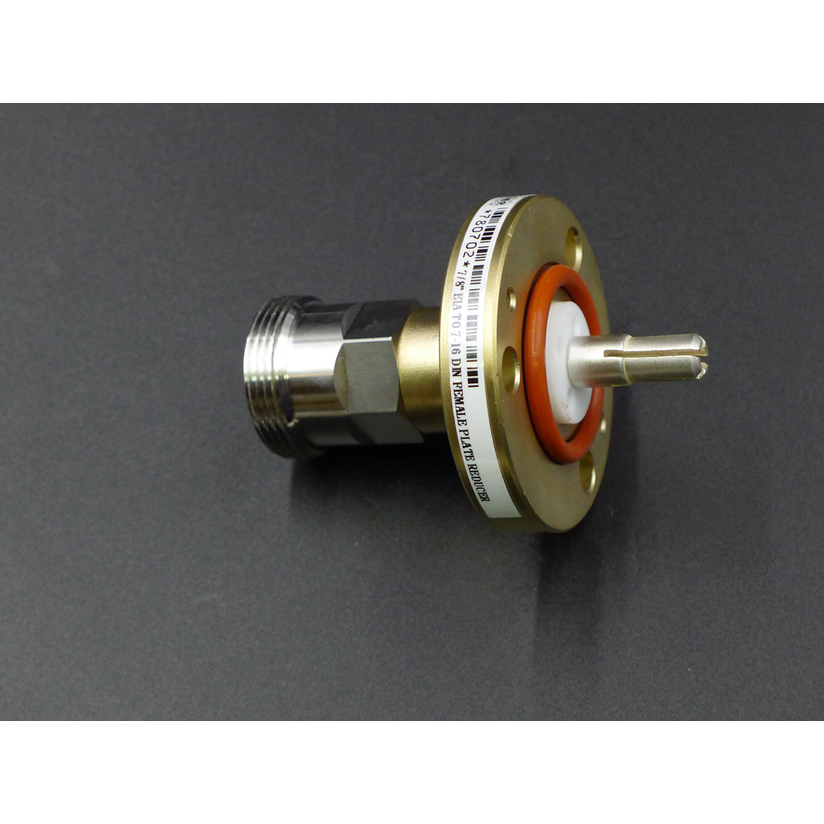

SWR 780702 7/8" Eia Male to 7-16 Din Female Plate Reducer - Image 3

SWR 780702 7/8″ Eia Male to 7-16 Din Female Plate Reducer

$540.00

The SWR 780702 is a premium 7/8″ EIA Male to 7/16 DIN Female Plate Reducer designed to provide a highly secure, low-loss transition between 7/8″ rigid transmission lines and high-power 7/16 DIN coaxial jumper cables. Developed to provide broadcast engineers with an easy and flexible real-time connection solution, this product brings outstanding structural integrity and electrical reliability coupled with a compact, space-saving flat plate design. It maintains a precise 50-ohm impedance, ensuring ultra-low VSWR and superior passive intermodulation (PIM) performance across demanding FM, TV, and telecom applications.

What makes this product exceptionally reliable is its factory-integrated, NON-REMOVABLE inner connector (bullet). This robust design guarantees perfect center alignment and prevents shifting or disconnection under extreme thermal or mechanical stress. Furthermore, the SWR 780702 comes as a complete, ready-to-install assembly for the 7/8″ interface, including a full hardware kit and an O-ring (0526). This ensures a flawless, gas-tight seal right out of the box, making it an indispensable adapter for antenna patching, transmitter outputs, and precision dummy load integration.

SKU: SWR-780702 Category: Brand:

Description

SWR’s SWR 780702 7/8″ Eia Male to 7-16 Din Female Plate Reducer gives engineers and studios finishing a professional install a clean, dependable installation in a accessory designed for real-world professional use.

Key Features

  • <p>The SWR 780702 7/8″ EIA Male to 7/16 DIN Female Plate Reducer is an advanced RF transition component all in a class of its own
  • It provides critical connectivity for professional broadcast environments, giving you the ability to connect transmitters, combiners, or high-power dummy loads directly to your transmission line
  • A quick intervention by competent engineering staff to adapt system sizes has never been so easy, thanks to the robust standard EIA interface combined with a highly stable 7/16 DIN receptacle.</p&gt
  • <p>Top product performance is also achieved thanks to the high-quality brass and copper construction, which provides excellent electrical conductivity and minimizes insertion loss
  • A standout feature of this specific model is the inclusion of a NON-REMOVABLE inner connector (bullet)
  • By securely integrating the center conductor, this adapter eliminates the risk of inner connection failure, ensuring that the 50-ohm impedance is strictly maintained even under intense RF heating or vibration
  • What is more, a secure, pressurized connection is guaranteed with the included O-ring and hardware kit for the 7/8″ side, making it perfectly suited for both indoor and outdoor gas-tight applications.</p&gt

Part number / SKU: SWR-780702  ·  Manufacturer: SWR
