SWR 150790 Patch Panel – 7 Pole – 3 U-Link, w/ 5/16 Nut Driver
SWR 150790 Patch Panel – 7 Pole – 3 U-Link, w/ 5/16 Nut Driver - Image 2

SWR 150790 Patch Panel – 7 Pole – 3 U-Link, w/ 5/16 Nut Driver

$3,300.00

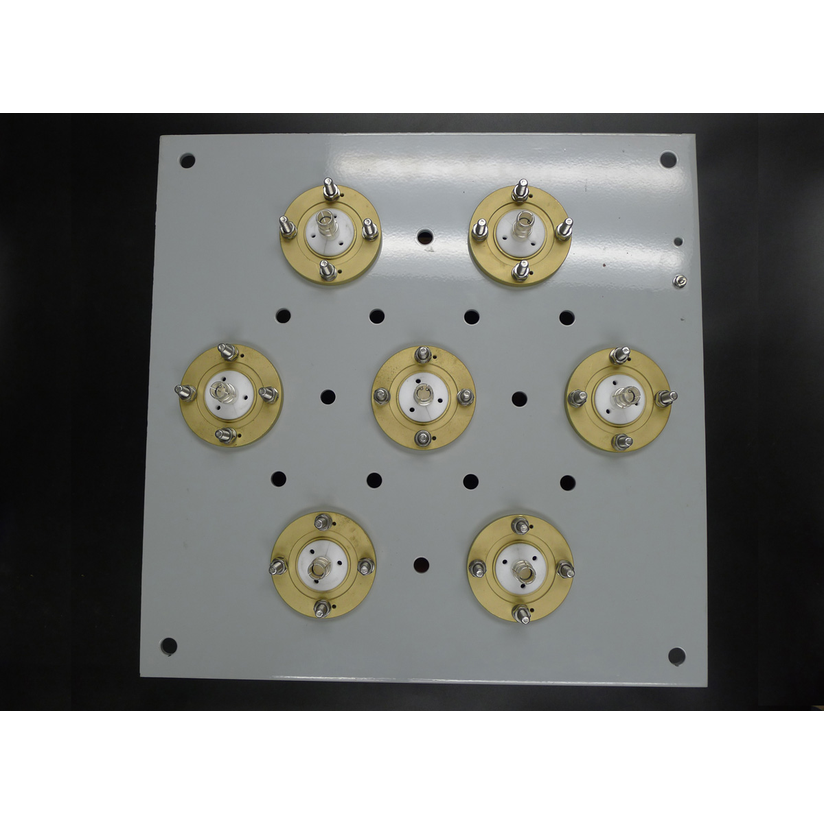

The SWR 150790 is a highly versatile and robust 7-Pole RF Patch Panel complete with three (3) U-Link jumpers. Developed to provide broadcast engineers with an advanced manual switching solution for routing high-power RF signals, this product brings outstanding structural integrity and electrical reliability coupled with a practical design. It maintains a precise 50-ohm impedance, ensuring ultra-low VSWR and superior high isolation across demanding FM, TV, and telecom applications.

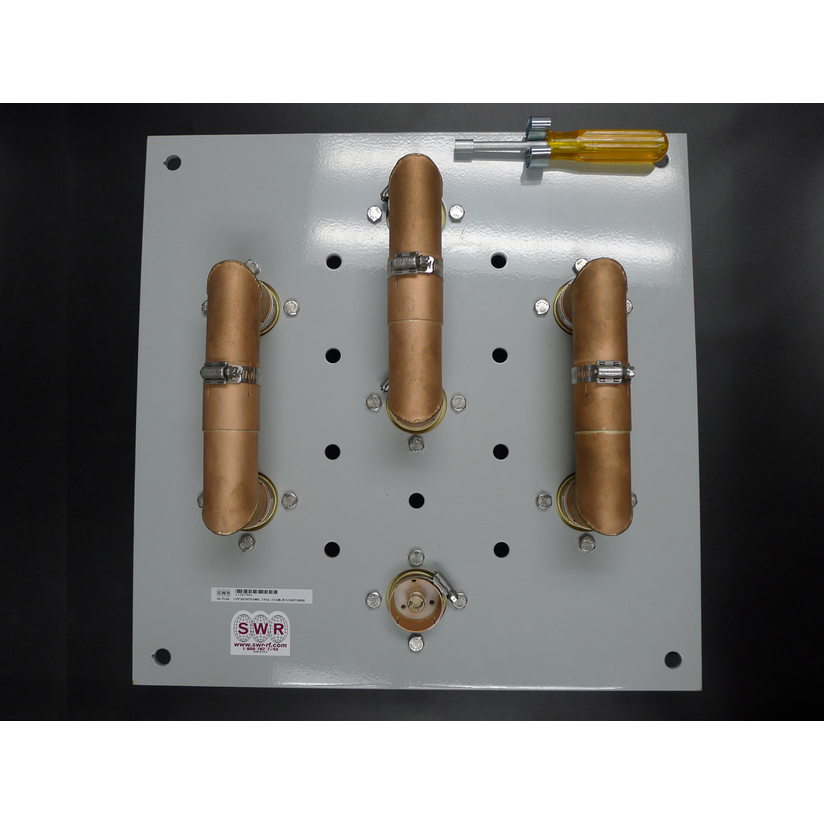

What makes this patch panel especially powerful is its massive 7-port configuration, offering maximum flexibility for complex, multi-transmitter facilities. It allows simultaneous routing of up to three independent RF paths—such as directing a main transmitter to the primary antenna, linking a backup exciter to a standby antenna, and connecting a third system to a dummy load. It comes equipped with a dedicated 5/16″ nut driver, ensuring you always have the exact tool needed for fast, secure U-Link changes during critical maintenance or emergency switching operations.

SKU: SWR-150790 Category: Brand:

Description

Built for broadcast engineers building or upgrading a transmission site, the SWR 150790 Patch Panel – 7 Pole – 3 U-Link, w/ 5/16 Nut Driver is a RF component that brings efficient, low-loss RF performance to your setup.

Key Features

  • <p>The SWR 150790 7-Pole Patch Panel with 3 U-Links is an advanced manual RF routing system all in a class of its own
  • It provides critical connectivity and cross-switching capabilities, giving you the ability to quickly re-route multiple transmitter outputs to main antennas, standby antennas, or test loads with unmatched versatility
  • The three included precision-formed U-Links ensure that the center conductors and outer shields remain perfectly aligned, maintaining a strict 50-ohm impedance under high RF power loads
  • What is more, quick and secure changes are guaranteed with the included 5/16″ nut driver, allowing station operators to tighten the U-Link fasteners efficiently without searching for tools
  • The system is designed to provide dependable, repeatable connections with maximum contact pressure.</p&gt

Part number / SKU: SWR-150790  ·  Manufacturer: SWR
