SWR 150736 1-5/8" Unflanged Male to 7/8" Flanged Male Tapered Reducer
SWR 150736 1-5/8" Unflanged Male to 7/8" Flanged Male Tapered Reducer - Image 2
SWR 150736 1-5/8" Unflanged Male to 7/8" Flanged Male Tapered Reducer - Image 3
SWR 150736 1-5/8" Unflanged Male to 7/8" Flanged Male Tapered Reducer - Image 4
SWR 150736 1-5/8" Unflanged Male to 7/8" Flanged Male Tapered Reducer - Image 5

SWR 150736 1-5/8″ Unflanged Male to 7/8″ Flanged Male Tapered Reducer

$424.00

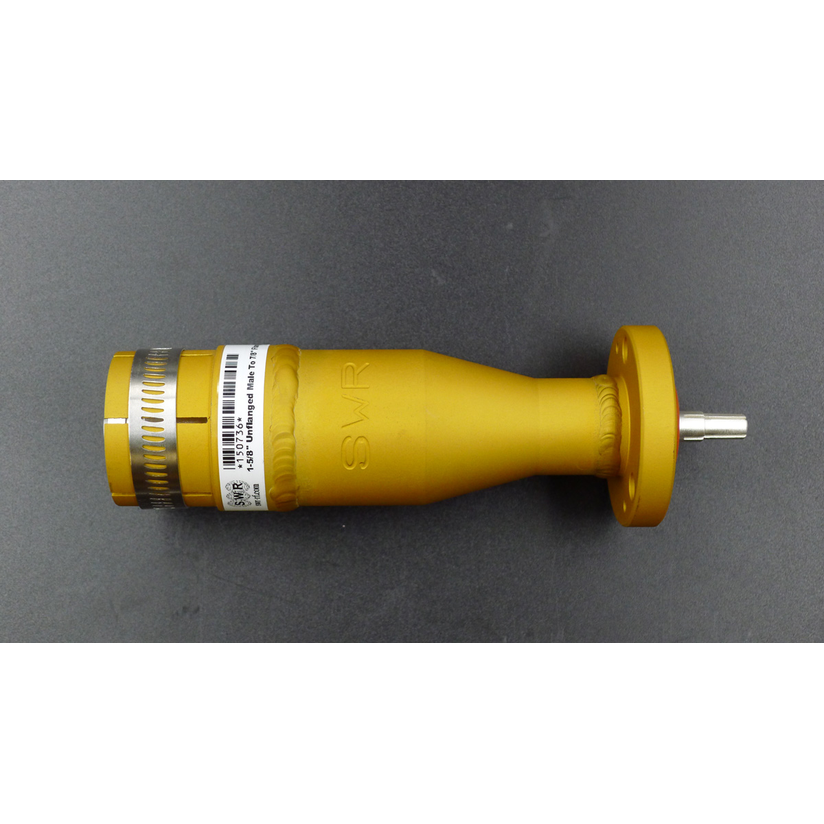

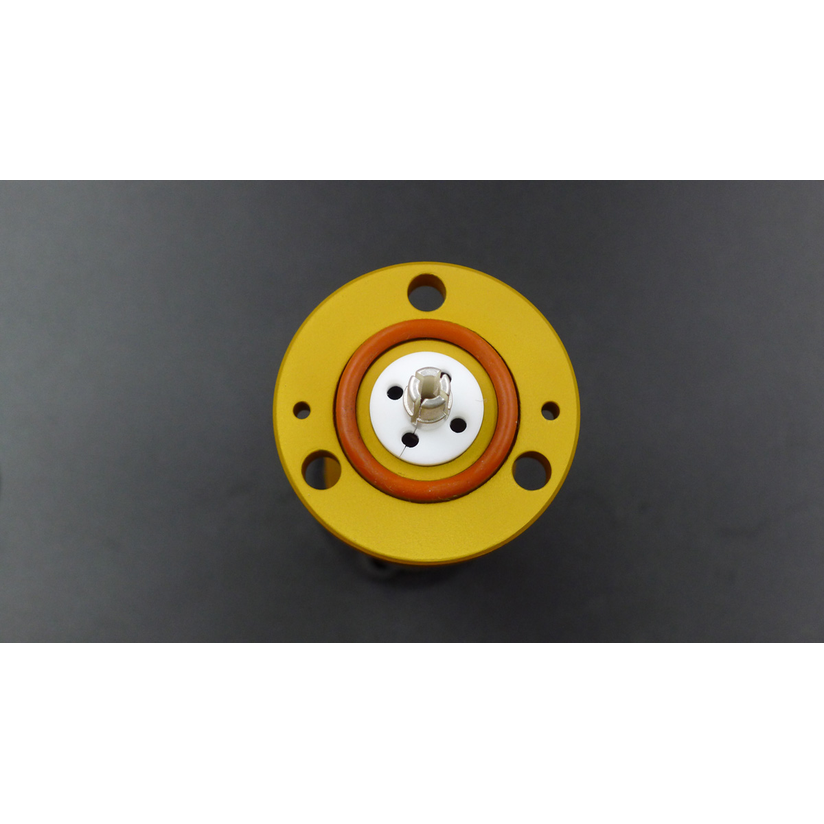

The SWR 150736 is a premium 1-5/8″ Unflanged Male to 7/8″ EIA Flanged Male Tapered Reducer, expertly engineered to provide a highly secure and ultra-low-loss transition between an un-terminated rigid transmission line and a standard flanged system. Unlike standard flat-plate reducers, this product features a tapered conical design that gradually matches the conductor diameters. This ensures outstanding structural integrity, maintains a precise 50-ohm impedance, and delivers the lowest possible VSWR across demanding high-power FM, TV, and telecom applications.

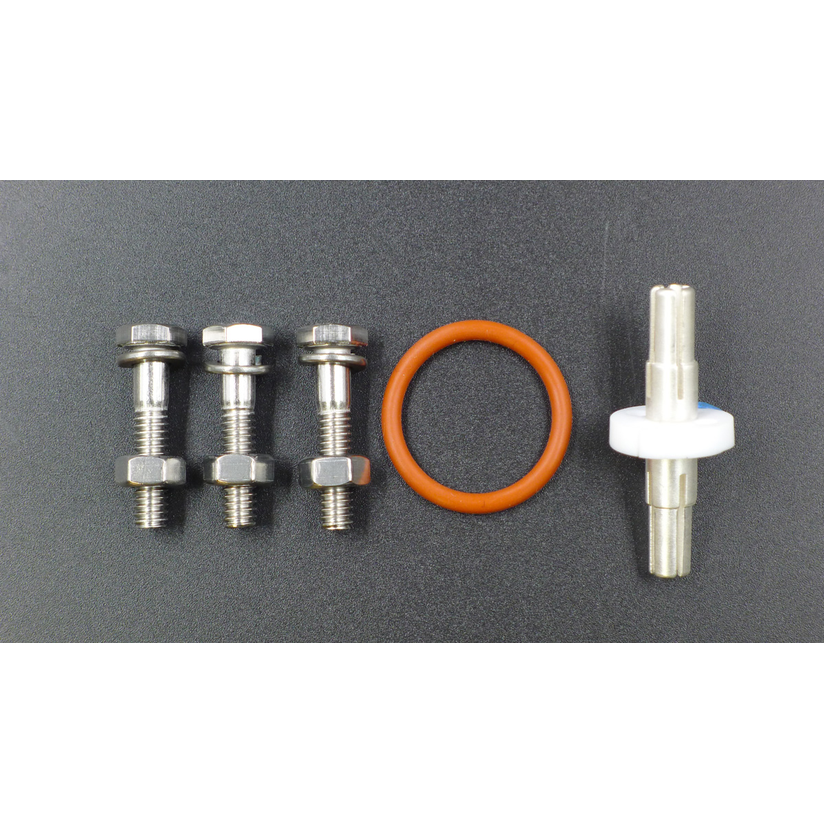

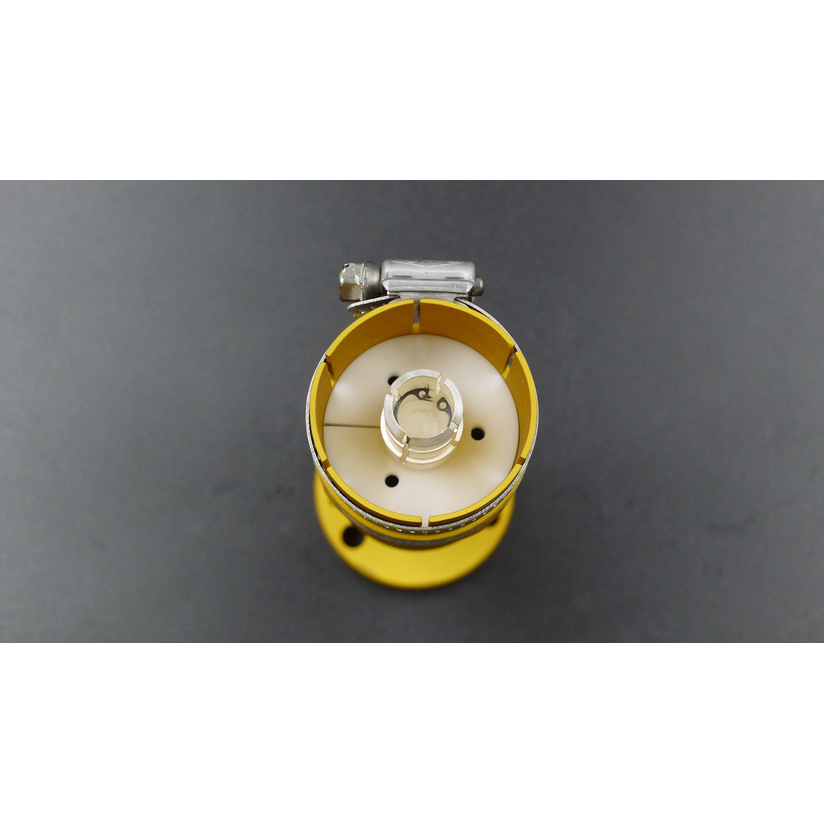

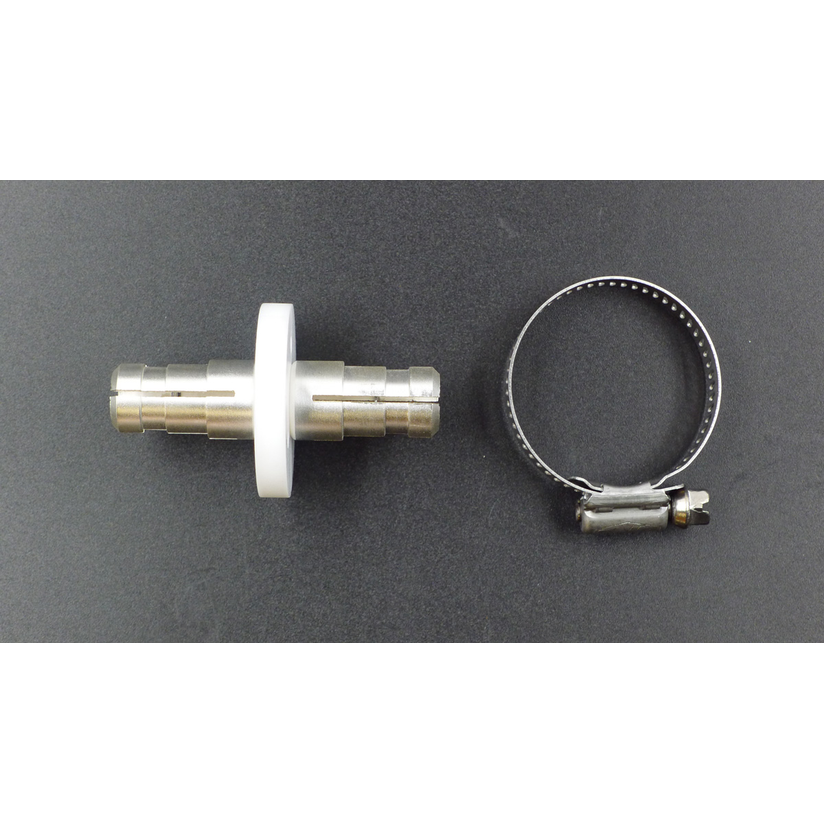

What makes this product especially versatile is its hybrid design, tailored for rapid field installations and custom line routing. The SWR 150736 comes as a comprehensive kit equipped with accessories for both ends, including one (1) heavy-duty line clamp for the 1-5/8″ side, two (2) inner connectors, and two (2) premium PTFE inline insulators. This ensures a flawless, mechanically secure, and electrically aligned connection right out of the box, making it an indispensable component for adapting field-cut lines to existing flanged infrastructure.

SKU: SWR-150736 Category: Brand:

Description

The SWR 150736 1-5/8″ Unflanged Male to 7/8″ Flanged Male Tapered Reducer is a accessory built for engineers and studios finishing a professional install. SWR engineered it to deliver a clean, dependable installation, day in and day out.

Key Features

  • <p>The SWR 150736 1-5/8″ Unflanged Male to 7/8″ Flanged Male Tapered Reducer is an advanced RF transition component all in a class of its own
  • The tapered geometry provides a smooth, gradual transition for the RF signal, virtually eliminating the reflections and capacitance bumps often associated with abrupt stepped reducers
  • A quick intervention by competent engineering staff to connect hybrid systems in the field has never been so easy, thanks to the combination of a solderless clamping mechanism and standard EIA bolting.</p&gt
  • <p>Top product performance is also achieved thanks to the high-quality brass and copper construction, which provides excellent electrical conductivity and minimizes insertion loss
  • The SWR 150736 also provides high durability against mechanical stress and environmental wear.</p&gt

Part number / SKU: SWR-150736  ·  Manufacturer: SWR
