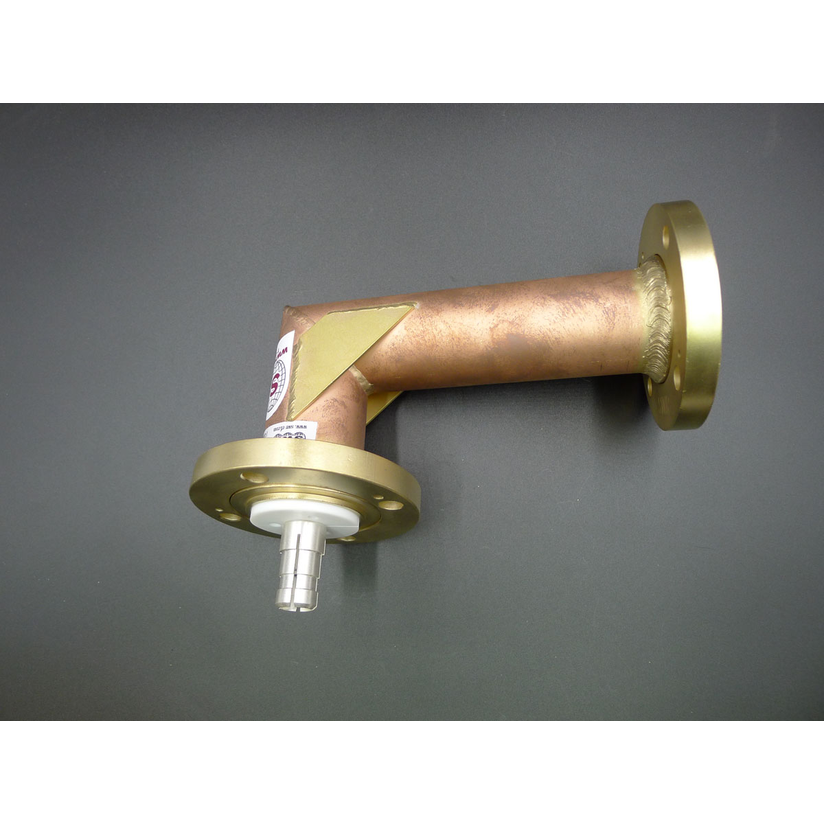

SWR 150626 1-5/8" Eia Flanged 90˚ Elbow

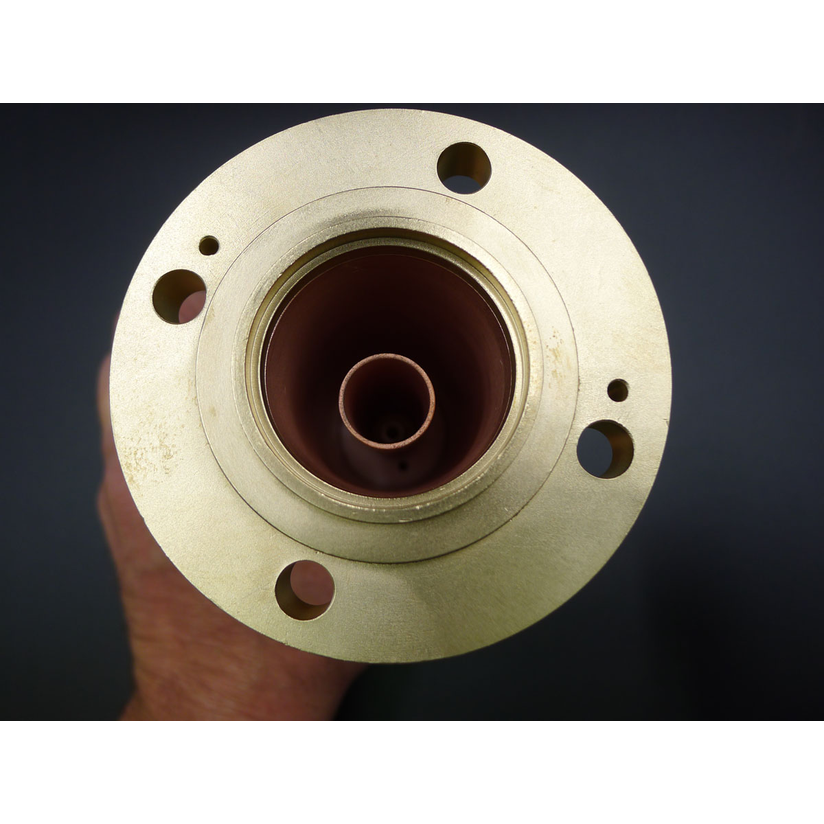

SWR 150626 1-5/8" Eia Flanged 90˚ Elbow - Image 2
SWR 150626 1-5/8" Eia Flanged 90˚ Elbow - Image 3

SWR 150626 1-5/8″ Eia Flanged 90˚ Elbow

$680.00

The SWR 150626 1-5/8″ EIA Flanged 90-Degree Elbow is a premium, reinforced RF component designed specifically for complex routing in high-power coaxial transmission lines. Developed to provide broadcast and telecom engineers with a reliable right-angle transition, this unequal leg elbow (measuring 3 inches by 6 inches) allows for precise directional changes where standard equal-leg elbows cannot fit. It maintains an exact 50-ohm impedance, ensuring ultra-low VSWR and minimal insertion loss.

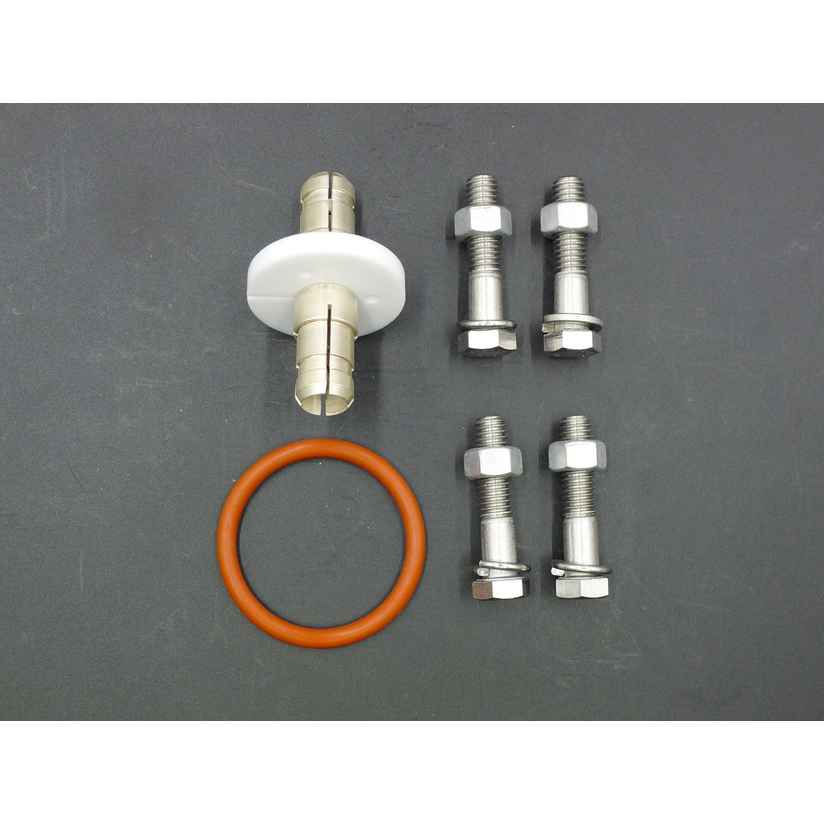

What makes this product exceptionally robust is its reinforced outer conductor design, providing superior mechanical strength against the physical stress of heavy transmission lines. The SWR 150626 comes as a complete, ready-to-install package, including the 1-5/8″ inner connector, a high-quality PTFE anchor insulator, an O-ring, and a full hardware kit, ensuring a fully gas-tight seal for pressurized systems.

SKU: SWR-150626 Category: Brand:

Description

Looking for a clean, dependable installation? The SWR 150626 1-5/8″ Eia Flanged 90˚ Elbow is a proven accessory trusted by engineers and studios finishing a professional install.

Key Features

  • <p>The SWR 150626 1-5/8″ EIA Flanged 90-Degree Elbow (Unequal Leg) is an essential RF routing component all in a class of its own
  • The unequal 3″ x 6″ leg dimensions provide engineers with the flexibility needed to bypass structural obstacles or make tight connections within transmitter racks
  • A quick and secure installation by competent engineering staff has never been so easy, thanks to the precision-machined EIA standard flanges that align perfectly every time.</p&gt
  • <p>Top product performance is also achieved thanks to the inclusion of a premium virgin PTFE (Teflon) anchor insulator and a precisely machined 1-5/8″ inner connector
  • These components work together to prevent inner conductor migration and maintain a stable 50-ohm electrical impedance across the bend, virtually eliminating signal reflection (VSWR)
  • What is more, the elbow is designed to be fully gas-tight when properly installed using the included O-ring and hardware kit, making it perfectly suited for pressurized transmission line systems
  • It allows for seamless integration into existing FM, TV, and communications antenna infrastructures.</p&gt

Part number / SKU: SWR-150626  ·  Manufacturer: SWR
