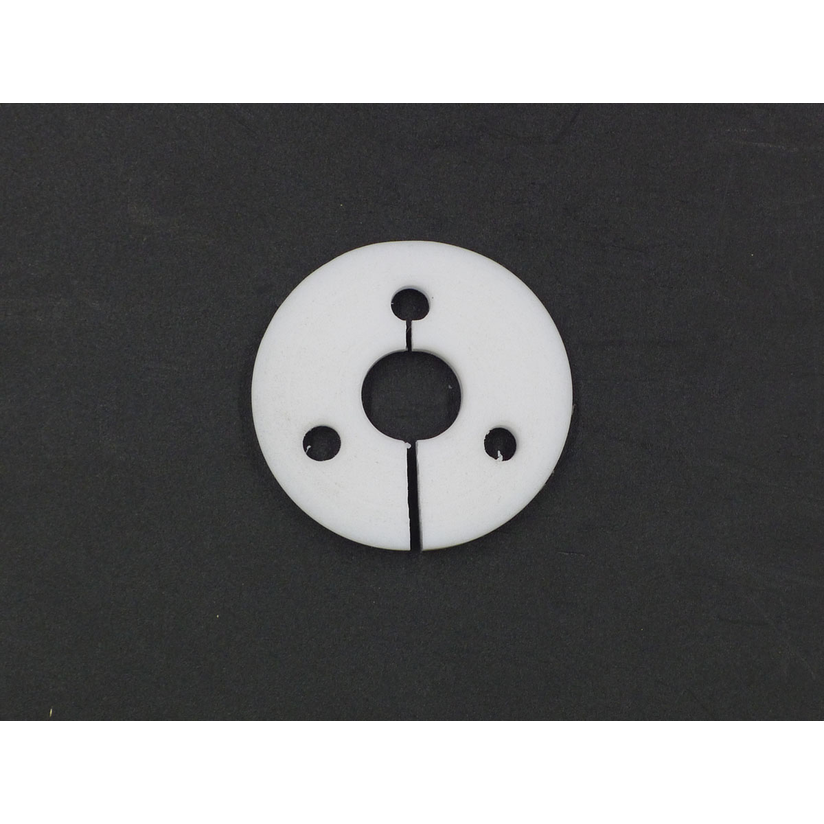

SWR 150526 1-5/8 " Eia Flange Anchor Insulator

SWR 150526 1-5/8 ” Eia Flange Anchor Insulator

$16.00

The SWR 150526 1-5/8″ EIA Flange Anchor Insulator is a premium RF component designed to provide exceptional structural support and electrical isolation for 1-5/8″ rigid and semi-rigid coaxial transmission lines. Developed for high-power broadcast and telecom applications, this anchor insulator ensures precise centering of the inner conductor while maintaining optimal 50-ohm impedance. Its robust construction guarantees reliable performance even in the most demanding RF environments.

What makes this product especially critical for transmission systems is its high-quality virgin PTFE (Teflon) construction, which offers excellent dielectric properties and minimal insertion loss. Designed for seamless integration into standard 1-5/8″ EIA flanged connections, the SWR 0526 anchor insulator prevents inner conductor migration and helps maintain the integrity of your broadcast infrastructure, ensuring long-term efficiency and reduced maintenance.

SKU: SWR-150526 Category: Brand:

Description

The SWR 150526 1-5/8 ” Eia Flange Anchor Insulator is a accessory built for engineers and studios finishing a professional install. SWR engineered it to deliver a clean, dependable installation, day in and day out.

Key Features

  • <p>The SWR 150526 1-5/8″ EIA Flange Anchor Insulator is an essential transmission line component all in a class of its own
  • It provides critical mechanical support to prevent the inner conductor from shifting, giving you access to stable VSWR and insertion loss characteristics across your entire broadcast system
  • A quick installation by competent engineering staff has never been so easy, ensuring your RF transmission line remains secure under high-power loads and thermal expansion.</p&gt
  • <p>Top product performance is also achieved thanks to the use of premium-grade virgin PTFE (Teflon), which delivers outstanding dielectric strength and handles high RF power levels without degradation
  • What is more, it acts as a stabilizing anchor point within the flanged connection, maintaining the exact coaxial geometry required for 50-ohm impedance
  • The SWR 0526 insulator also provides a number of great additional benefits, such as resistance to high temperatures and immunity to electrical arcing
  • It allows for reliable performance in FM, TV, and communications antenna systems to ensure that your broadcast infrastructure is always operating at peak efficiency.</p&gt

Part number / SKU: SWR-150526  ·  Manufacturer: SWR
