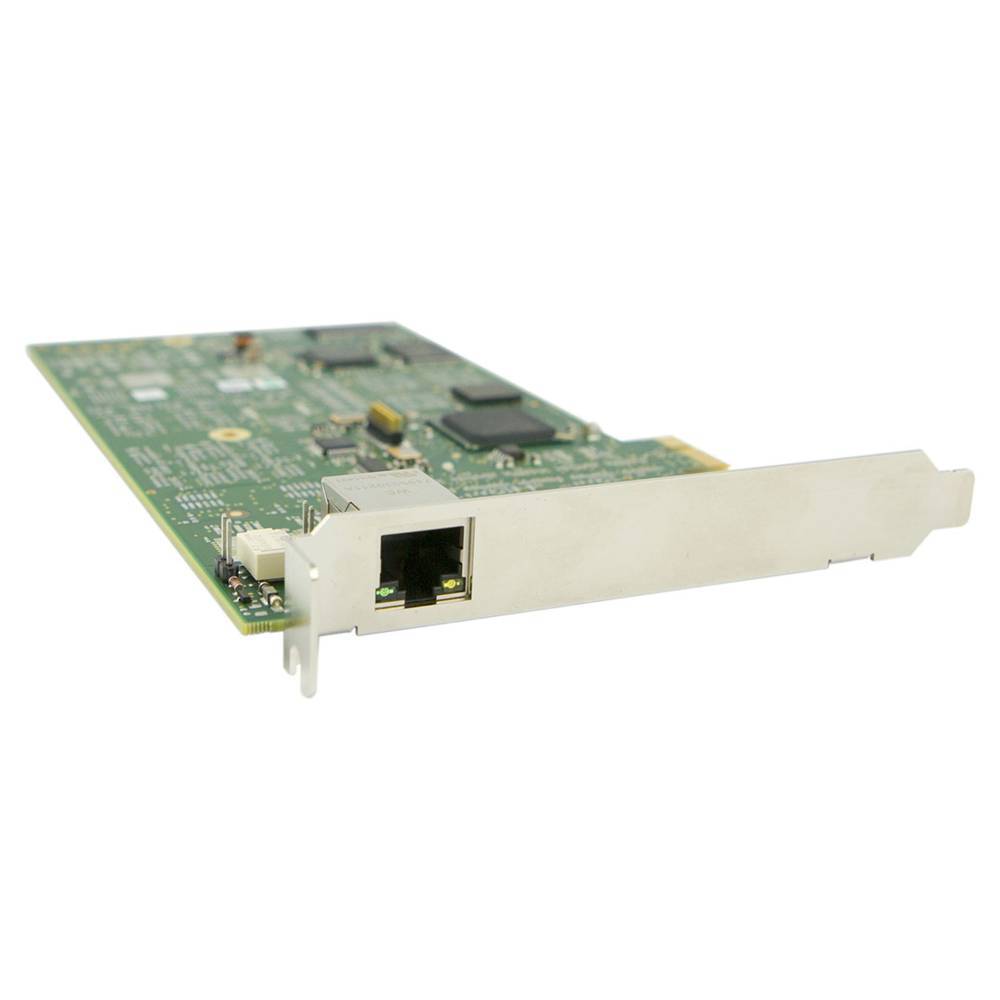

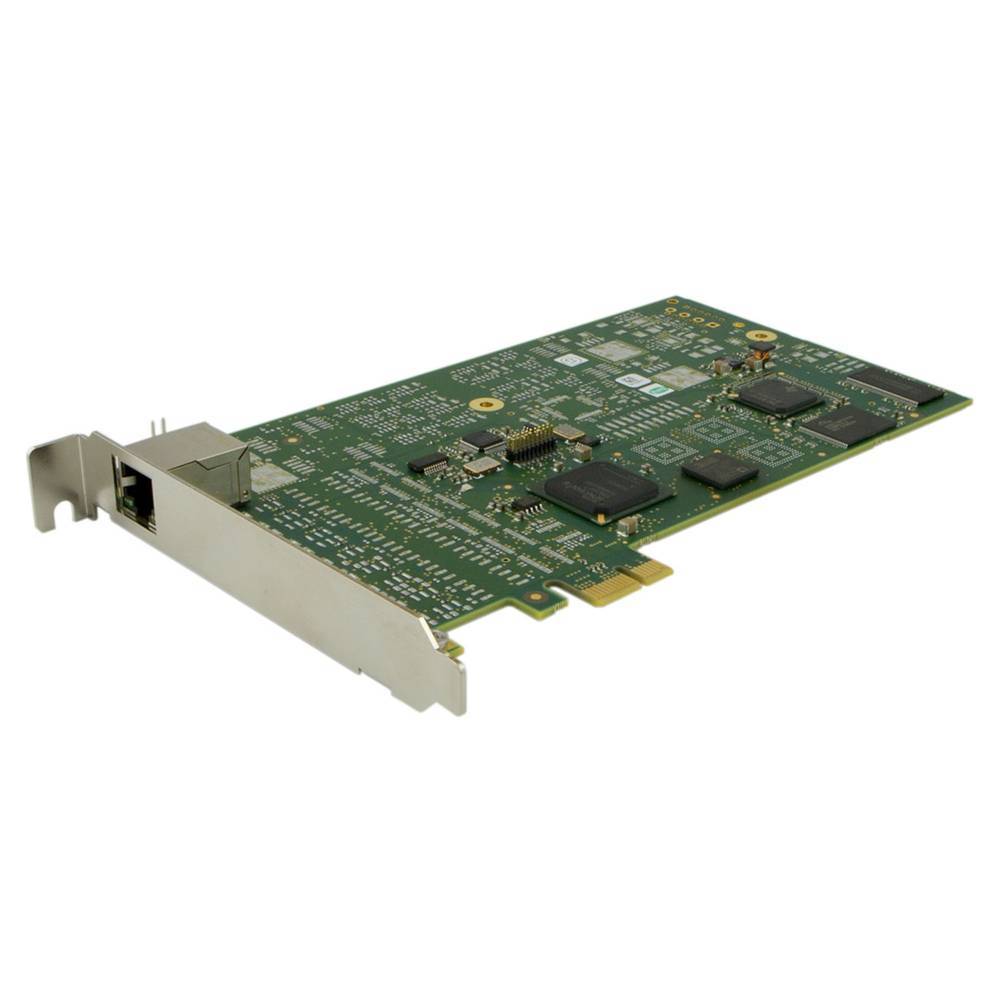

Sound 4 Pcie Playout Full ULA8 8 Channels-AES67 /Livewire

Description

Upgrade your setup with the Sound 4 Pcie Playout Full ULA8 8 Channels-AES67 /Livewire, a processor made for stations and studios that want a consistent, competitive on-air sound who expect polished, consistent audio.

Key Features

• <p>SOUND4 ULA8 – It guarantees very low latency of just 1.3 ms and is 100% compatible with Link &amp
• As this is a hardware solution, it also offers great stability
• Its Matrix engine has a special 3D Mode that introduces a notion of priority when connecting sources to destinations, with the order of priority ranging from 1 (lowest) to 9 (highest priority)
• This makes it possible to establish source scenarios for backup and mixes groups directly in the heart of the 3D matrix, which greatly simplifies operation.</p&gt
• <p>The 3D audio matrix also has a Mix Engine with the capacity of 16 inputs to 16 outputs
• Cross-fades are assignable separatel for each source
• Thanks to this tool, it is no longer necessary to use an external mixing engine to mix Playput sources with ULA sources (Livewire or Ravenna).</p&gt

Specifications & Details

<p>SOUND4 ULA8 – Playout is also 100% compatible with Link & Share – the SOUND4 protocol that provides “read and write” access to all parameters of the company's products and allows users to directly send commands to one or more SOUND4 cards.</p> <p>What is ULA</p> <p>ULA means “Universal Lan Audio”, in few words this is not a new standard, but a “compatible concept” where audio IP sources from different standard are now compatible and exchangeable. With ULA, we can catch a Livewire source and send it in Ravenna network… Thanks' to ULA, sources from different standard are fully cros compatible. For now, ULA integrates 2 standards (Livewire and Ravenna), we will add more standards soon.</p> <p>What is the scope?</p> <p>This card is mainly used as a sound card to directly play to Lan Audio (Livewire or Ravenna). Of course it is also possible to record from Lan Audio. This card is dedicated to OEM Integrators who also need advanced functionalities, like Mix Engine and 3D matrix Audio.</p> <p>What is the capacity of the cards?</p> <ul> <li>8 stereo inputs (Play)</li> <li>8 ULA inputs (Livewire or Ravenna)</li> <li>8 Stereo outputs (Record)</li> <li>8 ULA outputs (Livewire or Ravenna)</li> </ul> <p>What is the difference with a software driver solution?</p> <li>Low latency: 1.3ms</li> <li>ULA compatible (Livewire or Ravenna)</li> <li>Stability: this is a hardware solution!</li> <li>3D Matrix</li> <li>Mix Engine built in</li> <li>100% Link&Share compatible!</li> <p>3D matrix, what for?</p> <p>Until now the principle of operation of an audio matrix was to connect the inputs and outputs by their crossover points on a grid. This is the classic mode: “two dimensions” (input to output). With the 3D mode, SOUND4 introduces a notion of priority in the Matrix engine. In practice when connecting sources to destinations, it is now possible to define an order of priority, from 1 (lowest) to 9 (highest priority).</p> <p>It is then possible to establish source scenarios of backup, priority, mixing group directly in the heart of the 3D matrix. The aim is to simplify the task of OEM Integrators. Because operation will be extremely simplified, this new concept invented by SOUND4 will also reduce cost for end users…</p> <p>A Mix Engine Built In…</p> <p>The 3D audio matrix has also a Mix engine with a capacity of 16 inputs to 16 outputs. Cross-fades are assignable separately for each source. Thanks to the SOUND4 PLAYOUT ULA8, it is no longer necessary to use external mixing engine to mix playout sources with ULA sources (Livewire or Ravenna).</p> <p>100% Link&Share compatible</p> <p>The Link&Share is the SOUND4 control protocol, in practice it is a Telnet layer that provides read and write access to all parameters of SOUND4 products. Through Link&Share, the OEM Integrators can directly send commands to one or many other SOUND4 cards. In fact the Link&Share ca be seen as a “modern” generation of GPIO…</p>

Part number / SKU: S4-PCIe-PLAYOUT-FULL  ·  Manufacturer: Sound4
