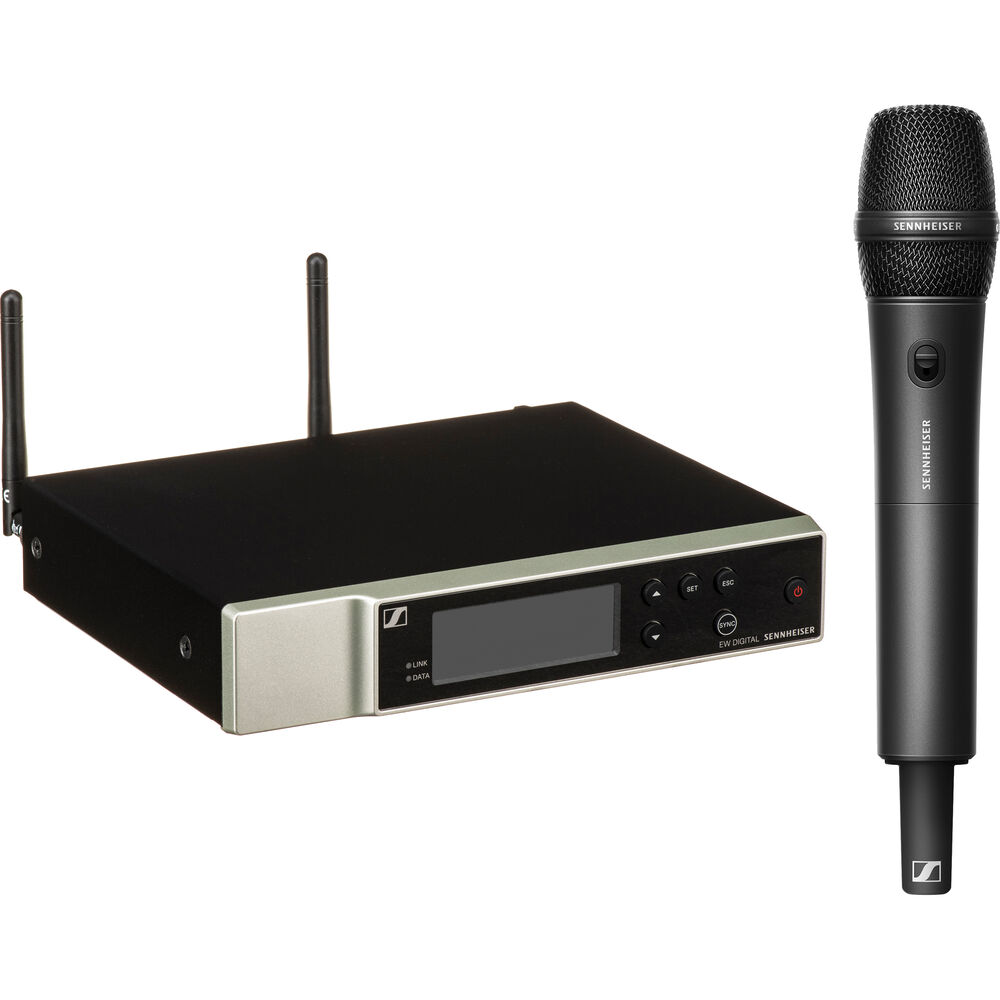

Sennheiser EW-D-835-S-SET-(Q1-6) Digital Wireless Handheld Set

Description

When clear, professional voice and sound capture matters, broadcasters, podcasters, worship teams and content creators turn to gear like the Sennheiser EW-D-835-S-SET-(Q1-6) Digital Wireless Handheld Set — a dependable microphone from Sennheiser.

Key Features

• Key Features
• For Presenters and Performers
• Pro Features with Fast & Easy Set Up
• MMD 835 Dynamic Cardioid Mic Capsule

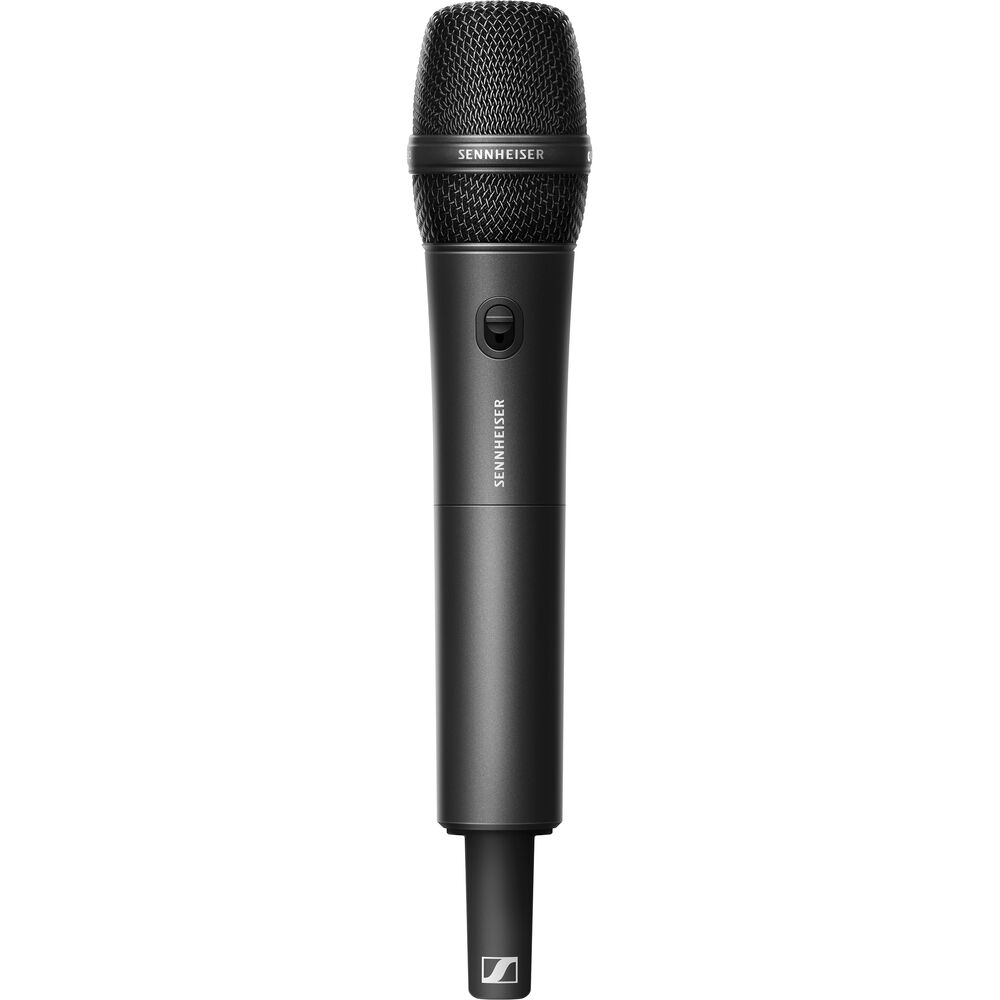

• Handheld Transmitter with Mute Switch

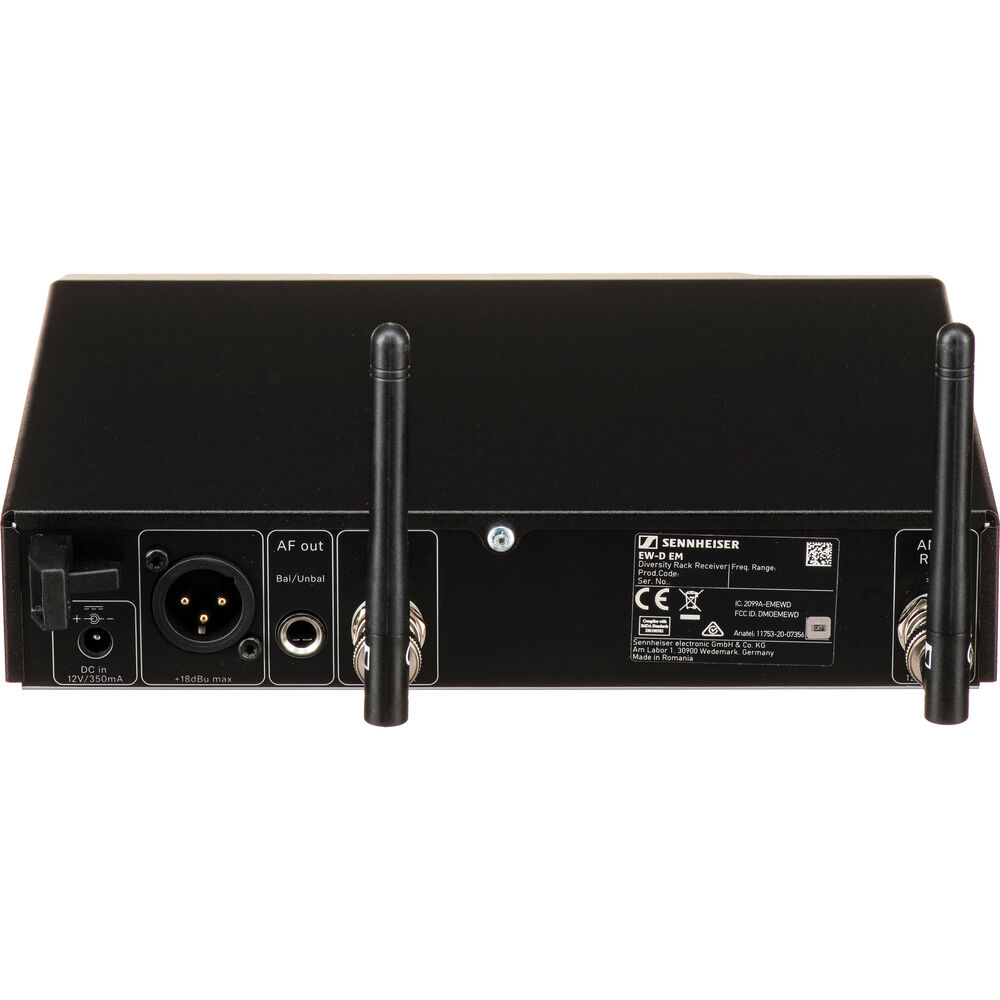

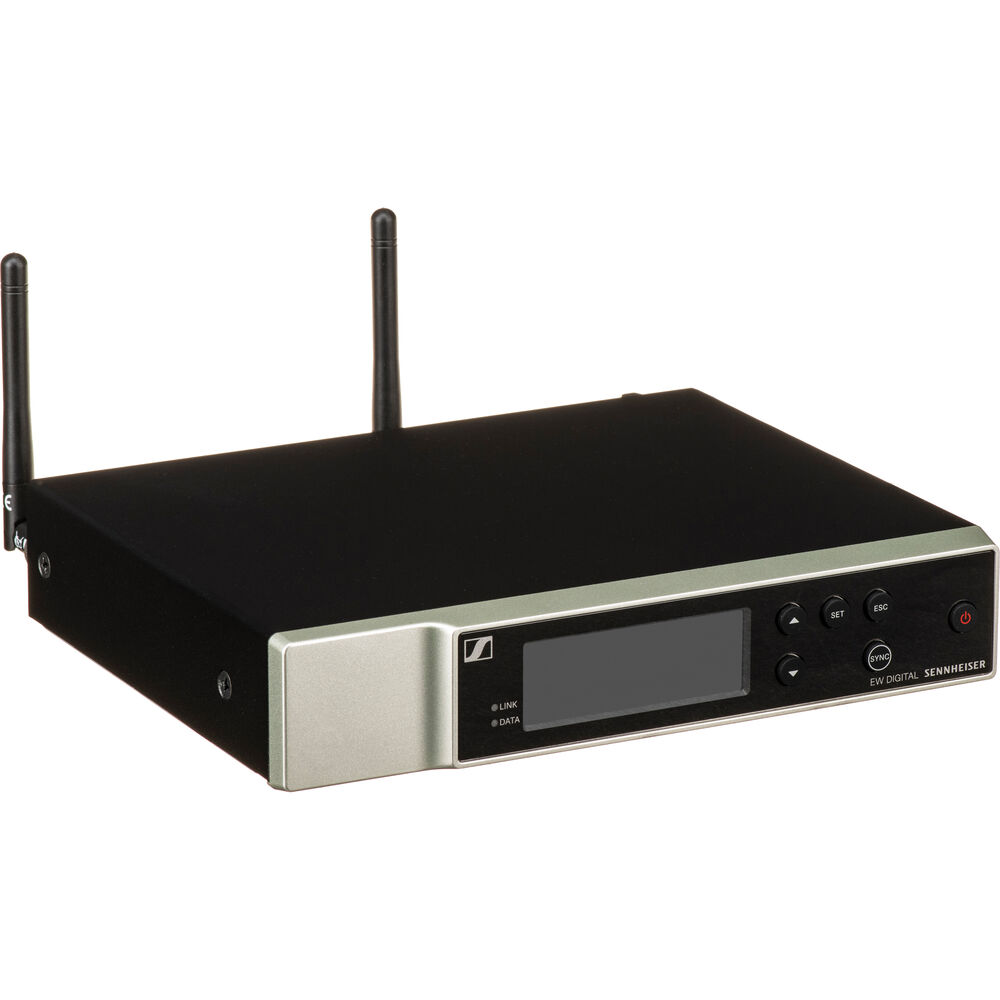

• Intelligent Diversity Rackmount Receiver
• 134 dB of Dynamic Range, 24-Bit Audio

Specifications & Details

2240 Frequencies on Equidistant Grid Set Up/Operate from Phone via Bluetooth 8-Hour AA /12-Hour Rechargeable Battery Expandable to 90 Mic Channels/330′ Range Sennheiser EW-D 835-S SET Specs Wireless Technology Digital UHF Number of RF Channel Frequencies Included Transmitters 1x Handheld Diversity Intelligent Switching Diversity RF Frequency Band 470 to 526 MHz RF Bandwidth Frequency Step Size RF Channel Scanning Auto-Scan Max Operating Range 328.1′ / 100 m (Line of Sight) Max Transmitters per Band Built-In Recorder Mobile App Compatible Yes: Android & iOS App Name: Smart Assist Functionality: Remote Control Bluetooth Bluetooth Operating Distance 120′ / 36.6 m (Transmitter Sync, App Control) Sample Rate/Resolution Dynamic Range Encryption Receiver Type Tabletop / Rackmount Mounting Options Rackmount (with Included Hardware) Rackmount Size 1 RU (1/2 Rack) 2x 1/4 Wave Rod, BNC (Rear-Mount) Number of Audio Channels Audio I/O 1x XLR 3-Pin Male Balanced Output (Locking) 1x 1/4″ TRS Female Unbalanced Output Gain Range 3 to +42 dB (3 dB Steps) Audio Output Level XLR Output: +18 dBu (Balanced) 1/4″ Output: +12 dB (Unbalanced) Frequency Response 20 Hz to 20 kHz Network I/O Word Clock I/O RF Output Power 10 mW (EIRP) Power Requirements AC/DC Power Adapter 11 to 13 VDC at 300 mA (Included) DC Input Power 13 VDC at 300mA AC Input Power 100 to 240 VAC, 50 / 60 Hz Display & Indicators 1x OLED (AF Level, Frequency, Mute, RF Level, Transmitter Battery Status) Operating Temperature 14 to 131°F / -10 to 55°C Dimensions 7.4 x 1.7 x 8.3″ / 189 x 44 x 212 mm 2.2 lb / 1 kg Transmitter Type 10 mW (ERP) Up to 10 mW (EIRP) Mute Switch Audio Input Level 2 to 4.35 V RMS Auto-Level Control 1x Internal (Handheld) Battery Type 2x AA (Included) 1x Sennheiser Battery Pack (Not Included, Replaceable) Battery Life 8 Hours (Alkaline) 12 Hours (Sennheiser Battery Pack) 1x LED (Mute) 1x LED (Sync) 2 x 10.6″ / 50 x 268 mm 10.7 oz / 304 g (without Batteries) Microphone Type Handheld Capsule Sound Field Polar Pattern Equivalent Noise Level Maximum SPL 154 dB SPL Sensitivity 2.1 mV/Pa

Part number / SKU: SEN-EW-D-835-S-SET-(Q1-6)  ·  Manufacturer: Sennheiser
