RVR PTX30LCD/S Microprocessor-Controlled FM Exciter
$3,503.00
30W Compact stereo transmitter.
Features:
PTXLCD is the most sold professional FM transmitter worldwide!
AUDIO PERFORMANCE: clear and transparent sound comparable to CD sound quality made possibile thanks to a noise/signal ratio as high as 90dB, low distortion and stereo separation as high as 60dB!
PRIMARY APPLICATION: Optimal for use as an independent exciter. Adjustable power output from 0 to 100%.
HARDWARE FEATURES: compact and indeformable thanks to the stainless steel chassis, in 2 rack units only.
INTERFACE CONTROL: totally microprocessor-controlled, easily programmed from menu through a large LCD and useful optical ENCODER.
INPUT/OUTPUT INTERFACE: built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals. S/PDIF, TOSLINK, AES/EBU digital audio inputs now are available as standard.
REMOTE CONTROL: built-in telemetry system via GSM modem, battery and battery charger or via WEB or via SNMP (option).
RELIABILITY/CONTINUITY: business continuity is guaranteed by an incredible range and variety of controls, such as Fold-Back control for effective VSRW (Voltage Standing Wave Ratio) protection and IAMLC (Intelligent Automatic Modulation Level Control) to keep modulation level steady.
EASE OF MAINTENANCE: advanced module engineering ensures extreme of access and simple maintenance.
REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.
Description

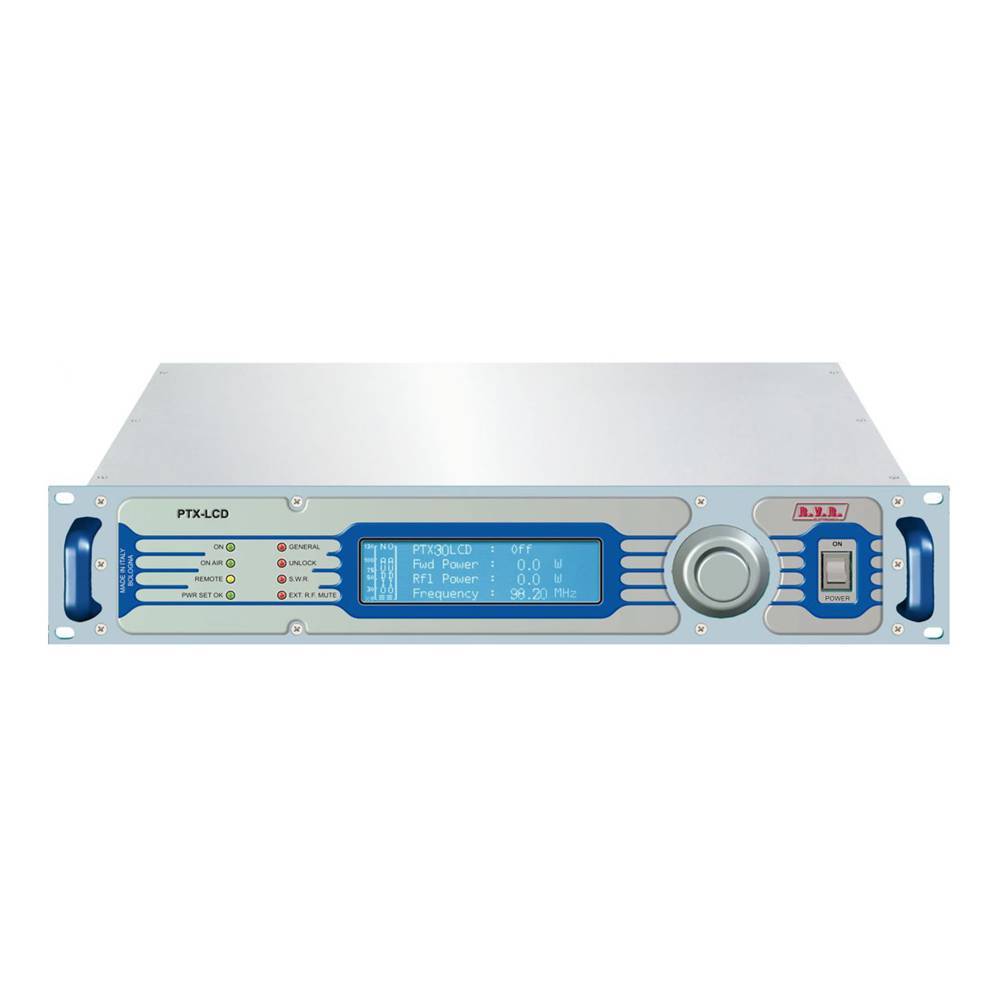

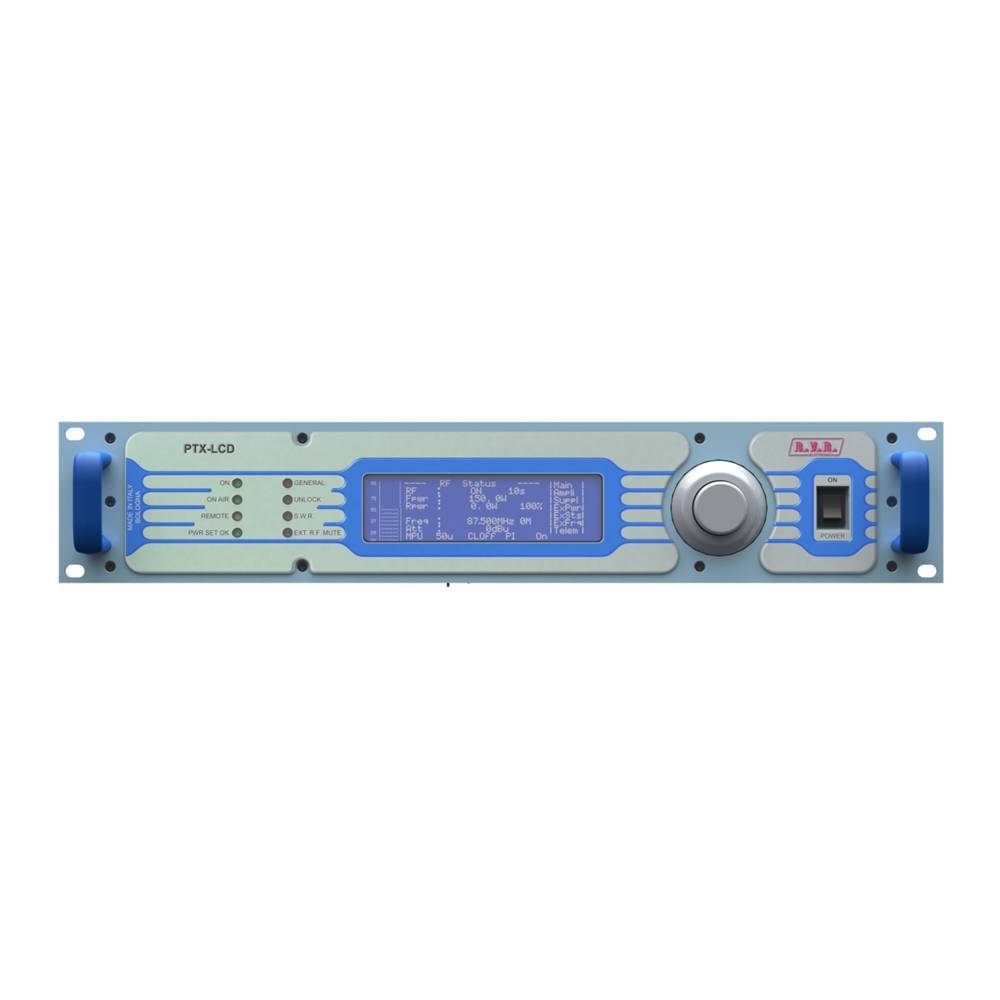

The RVR PTX30LCD/S is a 30W microprocessor-controlled FM exciter with mono, stereo and multiplex operation. Use it as a low-power transmitter or as the exciter for a larger amplifier chain.
Key Features
- 30W FM exciter (adjustable 10–100%)
- Mono, stereo and multiplex
- Microprocessor control with LCD
- 87.5–108 MHz
- Operates −5°C to +50°C
Technical Details
Modulation type Direct carrier frequency Operational mode Mono, Stereo, Multiplex Working temperature Working humidity Without condensing Working altitude Up to 3000 * With adequate air evacuation system in site Frequency setting Frequency stability Temperature range from -5°C to 50°C ±1 Modulation capability Refered @ 0dBu for 75kHz 150 Stereo, 200 Mono/MPX Meets or exceeds all FCC and CCIR rules Pre-emphasis 0, 25, 50 (CCIR), 75 (FCC) Selectable POWER REQUIREMENTS <td style=”border-style: none solid solid none;border-bottom-width: 1pt;border-bottom-color: rgb(191, 191, 191);border-ri
Part number / SKU: PTX30LCD/S · Manufacturer: RVR
