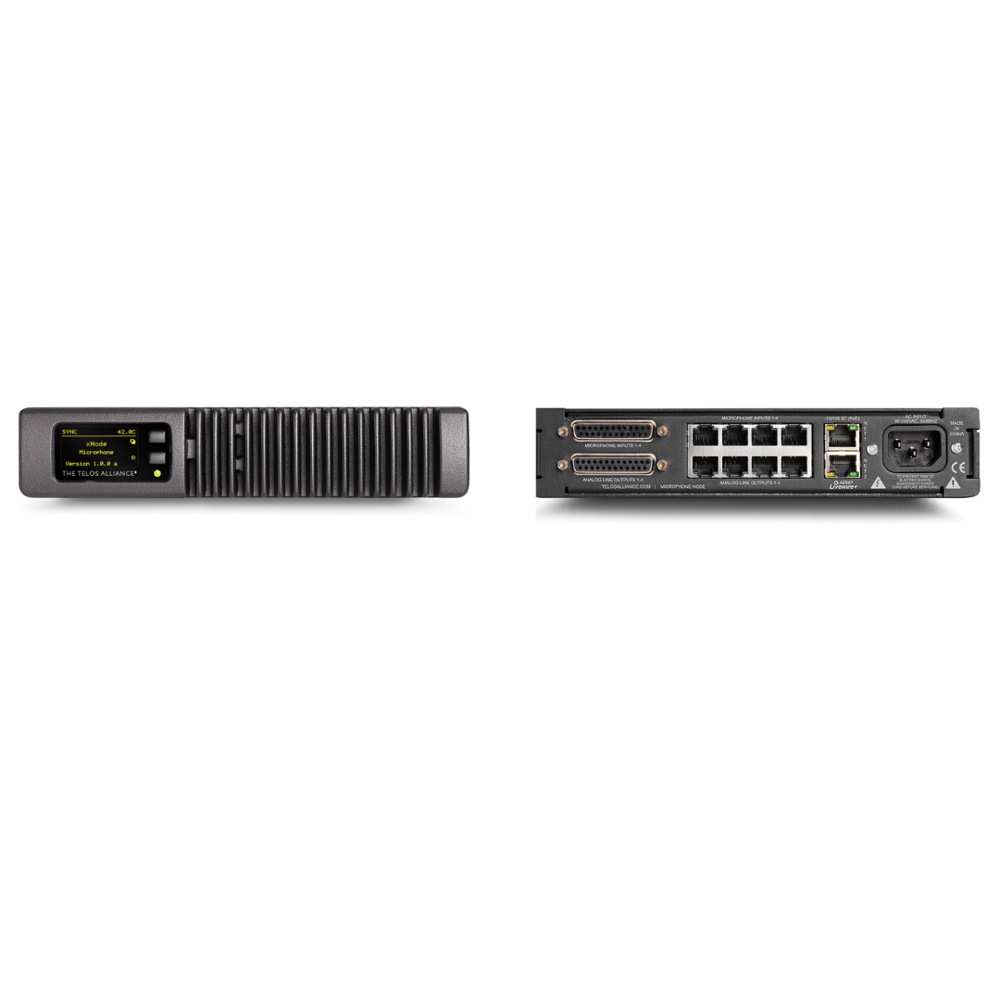

Linear Acoustic Lin-Mic-Xnode

Description

The Linear Acoustic Lin-Mic-Xnode is a processor built for stations and studios that want a consistent, competitive on-air sound. Linear Acoustic engineered it to deliver polished, consistent audio, day in and day out.

Key Features

• The xNode lightweight, half-rack, high-performance IP-Audio interface from Telos Alliance is loaded with advanced features and capabilities
• One-button configuration takes a new xNode from out-of-the-box to on-the-air in under one minute
• They’re fanless, which means they’re noiseless too
• Versatile mounting options let you deploy two xNodes in just 1RU of rack space, or on ceilings, walls, and under counters with an available wall-mount kit. xNodes have studio-grade audio performance specs
• Redundant power options (using AC mains and Power-over-Ethernet) and dual-redundant network interfaces are included, both with automatic switching
• And xNodes are fully AES67-compliant, so they work with all AES67 audio gear—now, and in the future
• In fact, they are the first and only AoIP I/O devices that are Livewire+™, RAVENNA, and AES67 compliant

Specifications & Details

Every xNode not only supports RAVENNA audio stream interoperability, but also enables advertising/discovery of those streams natively, above and beyond AES67. The Microphone xNode has four professional-grade microphone preamps with selectable Phantom power and software-adjustable gain. There are also four balanced analog line outputs to conveniently deliver headphone and studio monitor feeds back to your talent. Inputs and outputs are presented both on easy-to-install RJ-45s and high-density DB-25s, both of which connect to easily available 3rd-party breakout cables, to suit your connection preference.

Part number / SKU: LIN-MIC-xNODE  ·  Manufacturer: Linear Acoustic
