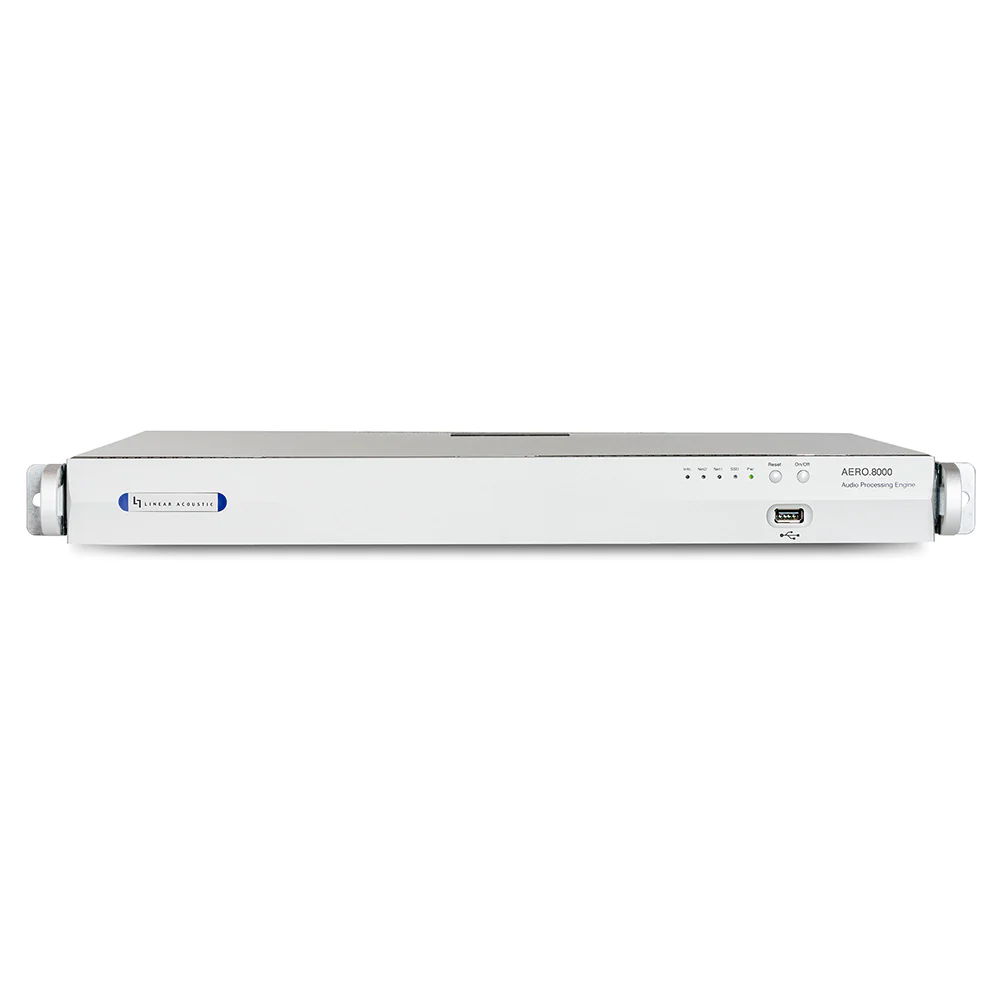

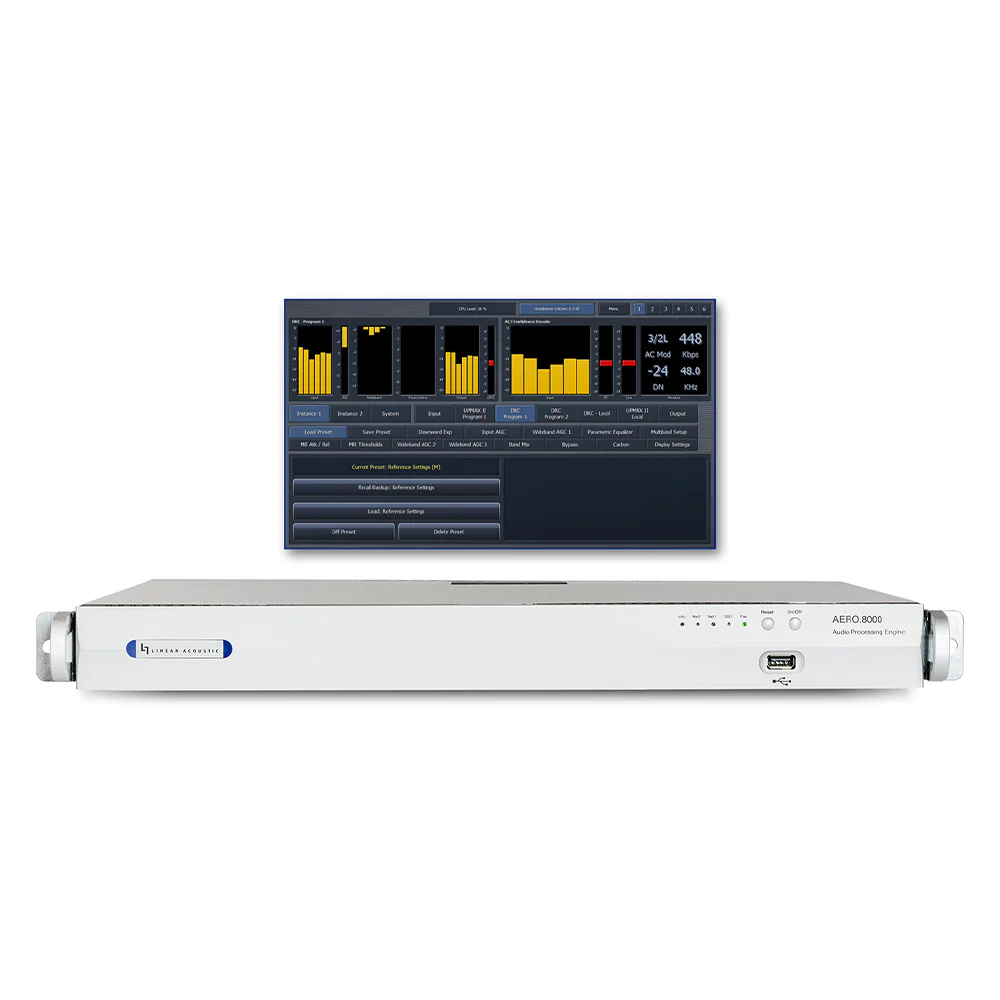

Linear Acoustic AERO.8000 Audio Processing Platform

Description

The Linear Acoustic AERO.8000 Audio Processing Platform is a processor built for stations and studios that want a consistent, competitive on-air sound. Linear Acoustic engineered it to deliver polished, consistent audio, day in and day out.

Key Features

• An advanced ITU Limiter (AI) and ITU BS
• 1770-3 metering guarantees fast, accurate and measureable compliance with ATSC and EBU R-128 loudness recommended practices while maintaining the highest possible audio quality.</p&gt
• <p>Upmixing is provided by the Hollywood-approved UPMAX® II algorithm which delivers engaging 5.1-channel audio from two-channel sources
• AutoMAX™ detection and switching between 2.0 and 5.1 surround sources makes full time 5.1 surround output easy to achieve with viewer-pleasing results.</p&gt
• <p>AERO.8000 runs on the new Linear Acoustic AERO.8000 Processing Engine hardware
• Each Processing Engine is capable of handling up to eight AMX processing instances and 16 stereo pairs of AES67/ Livewire I/O
• The eight AMX instances can be any combination of AMX5.1 (5.1+2+2), AMX2.0 (2+2+2) or AMX5x2 (2+2+2+2+2)

Specifications & Details

All AMX instances support SAP/DVS, LoRo/LtRt downmix, local audio insertion, and optional Audio Description (warble tone) functionality. ITU-R BS.1770-3 or EBU R128 meters are present on each audio program output. Linear Acoustic Crowd Control™, which eliminates viewer complaints about “missing” or “hard to hear” dialogue, is now available for both 2.0- and 5.1-channel sources.</p> <p>Dolby® Digital/Dolby Digital Plus transcoding is optionally available for each AMX instance as is Nielsen® watermark encoding for AMX5.1 and AMX2.0 instances, including N2, N6, and CBET.</p> Multiple logs of LKFS loudness values, True Peak, and Dolby dialnorm and acmod values are provided for each program output. The remote control application also delivers remote audio monitoring so the user can audition signal quality anywhere link bandwidth permits. An http server is also included for log retrieval and provides control of all parameters and retrieval of status via network commands.</p> <p>Audio over IP (AoIP) connectivity via Livewire+/AES67 enables enterprise-wide audio access. Audio from any video source can be put on the AoIP network using a wide variety of Livewire+/AES67 compliant devices available from Linear Acoustic, Axia Audio, and other 3rd party vendors.</p>

Part number / SKU: LIN-AERO.8000  ·  Manufacturer: Linear Acoustic
