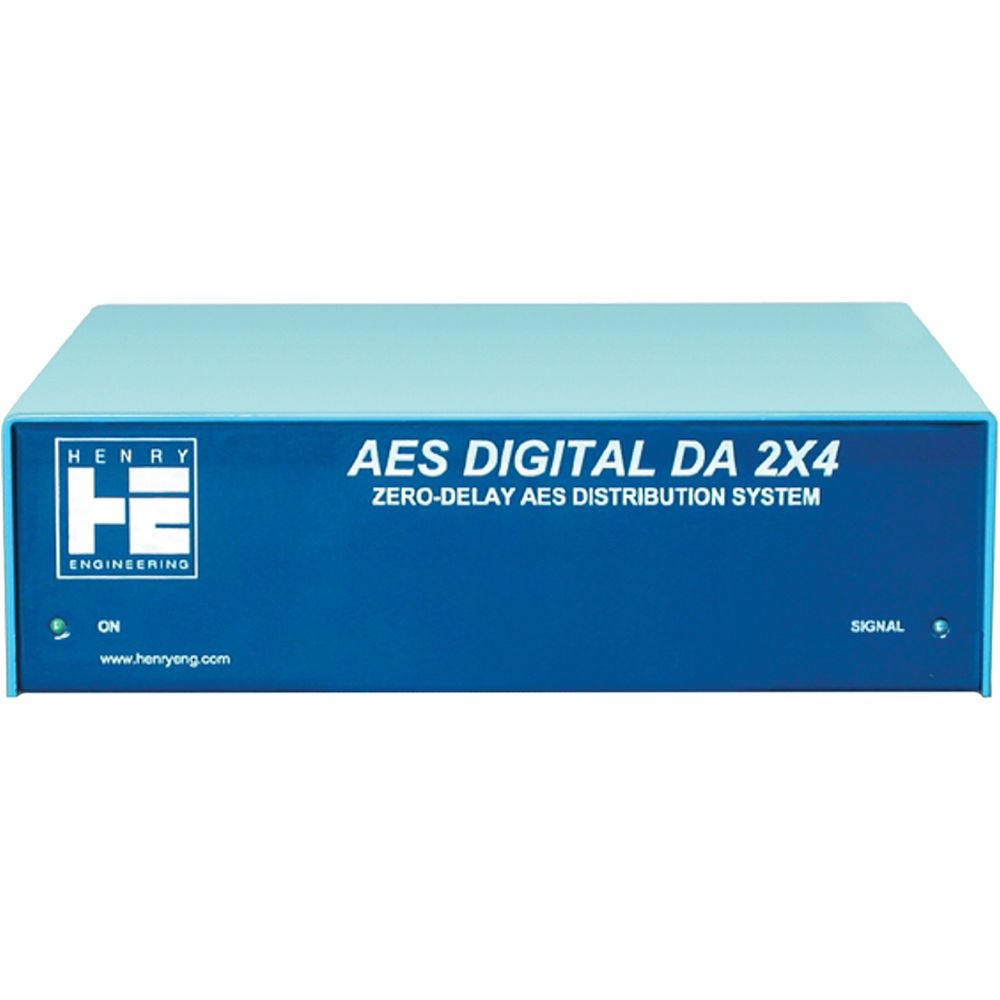

Henry Engineering Dda AES Digital DA 2x 4 Distribution System

Description

HENRY ENGINEERING’s Henry Engineering Dda AES Digital DA 2x 4 Distribution System gives engineers and studios finishing a professional install a clean, dependable installation in a accessory designed for real-world professional use.

Key Features

• The AES Digital DA 2X4 is a distribution system for digital audio signals
• It can accept either an AES or S/PDIF digital audio stream, and create four identical AES outputs
• The AES DA is 100% bit-accurate and transparent to the source, adding absolutely no delay or latency to the signal
• The AES input and all four AES outputs are individually transformer balanced and isolated from ground
• The S/PDIF input signal is converted to an AES standard level and source impedance

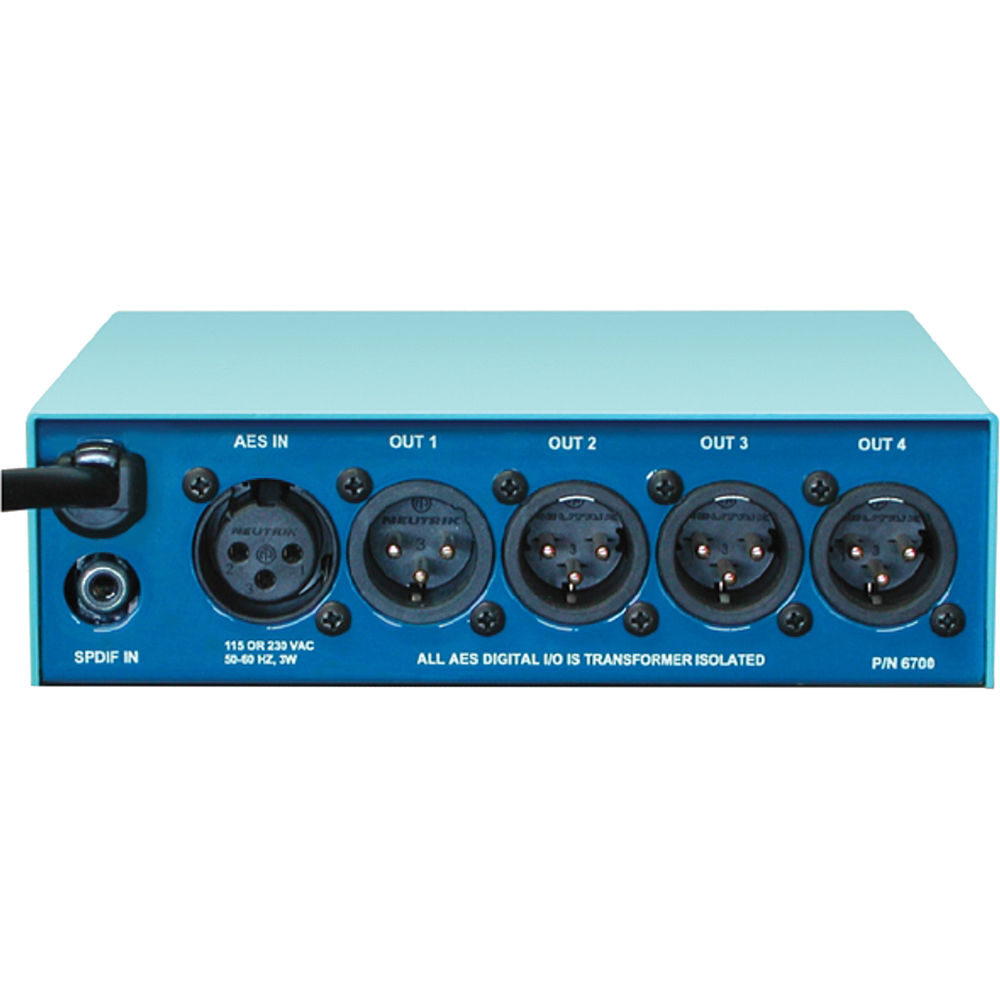

• The AES I/O is via XLR connectors
• Pin 1 is connected to the AC “safety” ground

Specifications & Details

The S/PDIF input is via an RCA connector; the shield is isolated from the AC ground. No user adjustments or calibration is necessary. A blue “Signal” LED confirms the presence of an input signal. The AES Digital DA 2X4 is powered with a built-in AC power supply, which can be set by the user to operate on either 115 or 230 volts AC. The AES Digital DA 2X4 is 1/3 rack wide, and can be mounted using the optional Rack Shelf. It can also be mounted with Henry Engineering’s Desk Mount Kit or the wall/ cabinet mounting brackets.

Part number / SKU: HEN-AES-DIGITAL-DA-2X4  ·  Manufacturer: HENRY ENGINEERING
