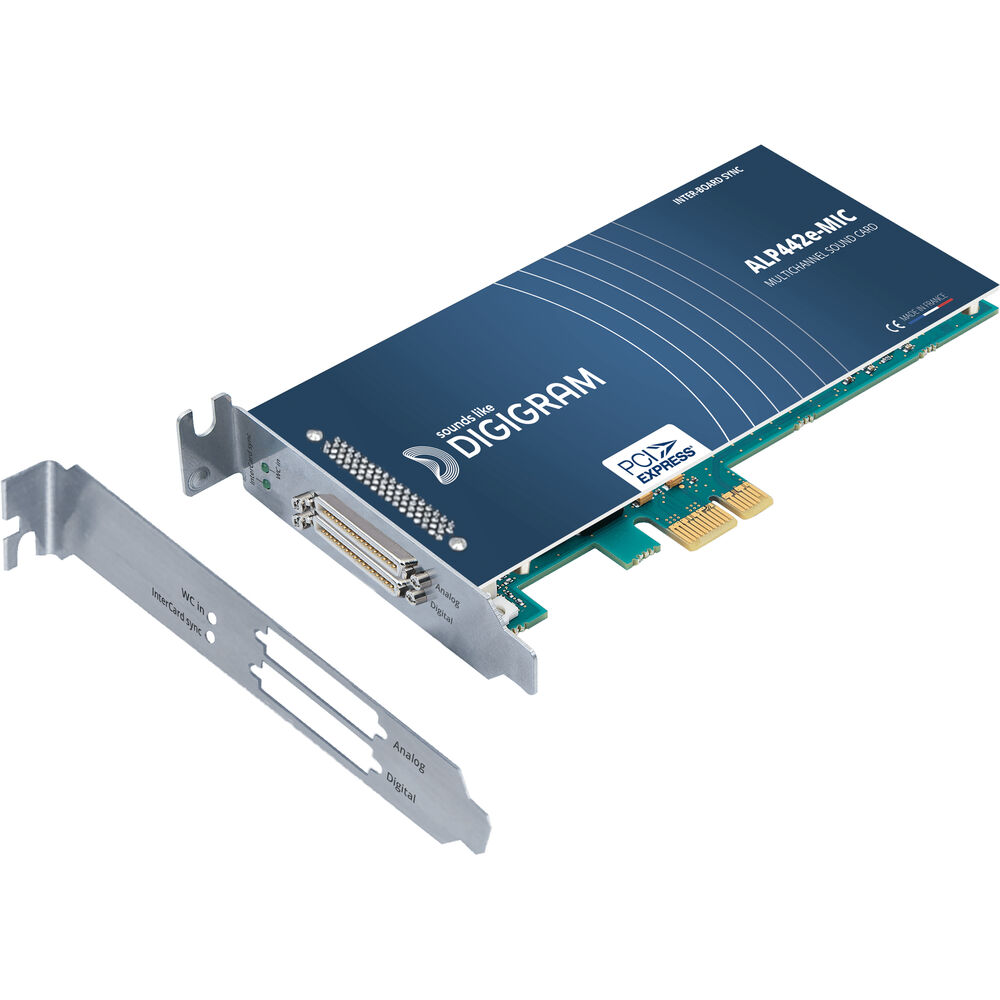

Digigram ALP442E Low Profile Pcie Card

Description

When professional audio in and out of your system matters, radio stations, podcasters and production studios turn to gear like the Digigram ALP442E Low Profile Pcie Card — a dependable audio solution from Digigram.

Key Features

• Features:
• For Professional Audio Applications
• Fits PCIe Slot, Windows/Linux
• 4 Mic/Line Analog Inputs
• 4 Analog Line Outputs
• 1 AES3 In, 2 AES3 Outs
• 8 GPIs and 8 GPOs

Specifications & Details

Wordclock I/O, AES11 Input 24-Bit / 192 kHz AD/DA Conversion 16×16 Onboard Mixer Low-Latency Drivers Digigram ALP442e-MICSpecs: Channels of I/O Analog: 4 Inputs / 4 Outputs at 44.1/48/88.2/96/176.4/192 kHz Digital: 2 Inputs / 4 Outputs at 44.1/48/88.2/96/176.4/192 kHz Built-In DSP Maximum Sampling Rate 192 kHz / 32-Bit (PCM) Number of Microphone Inputs Built-In Microphone Gain/Trim Range XLR Line Inputs: -24 dB to +16 dB (in 0.5 dB Steps) XLR Line Outputs: -90 dB to +12 dB XLR Mic Inputs: 0 dB to +56 dB (in 0.5 dB Steps) XLR Digital Inputs: -90 dB to +12 dB (in 0.1 dB Steps) XLR Digital Outputs: -90 dB to +12 dB (in 0.1 dB Steps) High-Pass Filter Solo/Mute Analog Audio I/O 4x XLR 3-Pin Balanced/Unbalanced Line Input (on Optional Breakout Cable) 4x XLR 3-Pin Balanced/Unbalanced Line Output (on Optional Breakout Cable) Phantom Power 48 V, Selectable On/Off Digital Audio I/O 4x XLR 3-Pin AES3 In & Out (on Optional Breakout Cable) Host Connection Host Connection Protocol USB (Non-Host) 2x BNC Word Clock Input or Output (on Optional Breakout Cable) Network I/O Expansion Slots Other I/O 2x DB-25 GPIO In/Out (on Optional Breakout Cable) Frequency Response XLR Line Inputs: 20 Hz to 20 kHz ±0.83 dB (at 48 kHz) 10 Hz to 20 kHz ±2.72 dB (at 48 kHz) XLR Line Outputs: 10 Hz to 20 kHz ±0.57 dB Maximum Input Level XLR Line Inputs: +24 dBu XLR Mic Inputs: +10 dBu Maximum Output Level XLR Line Outputs: +24 dBu Impedance XLR Mic/Line Inputs: > 10 Kilohms (Balanced) XLR Line Outputs: < 100 Ohms (Balanced) XLR Line Inputs: > 115 dBA (Unweighted) 112 dB (Unweighted) XLR Line Outputs: > 109 dBA (Unweighted) 106 dB (Unweighted) XLR Line Inputs: < -98 dB (At 22 dBu, 1 kHz) XLR Line Outputs: < -96 dB (At 22 dBu, 1 kHz) XLR Mic Inputs: < -124 dB (at +56 dB Gain, 48 kHz) Sample Rates AES3: 32 / 44.1 / 48 / 64 / 88.2 / 96 / 128 / 176.4 / 192 kHz (PCM) Bit Depths 8 / 16 / 24 / 32-Bit / 32-Bit Float (PCM) Sync Sources AES11, Internal, Word Clock Media/Memory Card Slot OS Compatibility Windows 10 or Later Mobile App Compatible Required Hardware PCIe Card Slot Power Requirements

Part number / SKU: DIG-ALP442E  ·  Manufacturer: Digigram
