Broadcast Tools MIX-4 Four Channel ( Discontinued )

Description

The Broadcast Tools MIX-4 Four Channel ( Discontinued ) is a accessory built for engineers and studios finishing a professional install. Broadcast Tools engineered it to deliver a clean, dependable installation, day in and day out.

Key Features

• The Mix-4 is a four-channel stereo line level mixer with a professional microphone input, along with a stereo line output and mix-minus monaural output to drive a telephone hybrid
• The Mix-4 mixer is ideally suited for the typical broadcast studio or any similar applications
• The Mix-4 features four high impedance stereo line level mixing inputs which accept balanced or unbalanced stereo sources

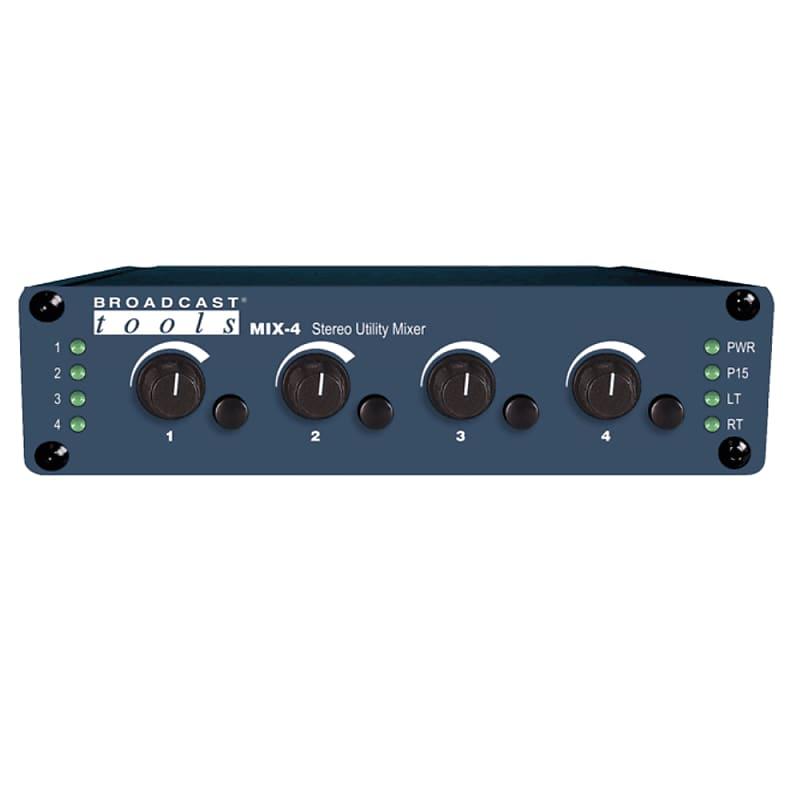

• Each input is equipped with rotary level controls, along with on/off switches and LED indicators
• Input one may be configured as either a stereo line input or a microphone input with or without 15V phantom power via rear panel switches
• The microphone input uses a high-performance pre-amp from THAT Corporation
• Inputs one through four feed the balanced output, while inputs one, two, and three feed the balanced mono mix-minus output, which allows input four to accept caller audio from a telephone hybrid

Specifications & Details

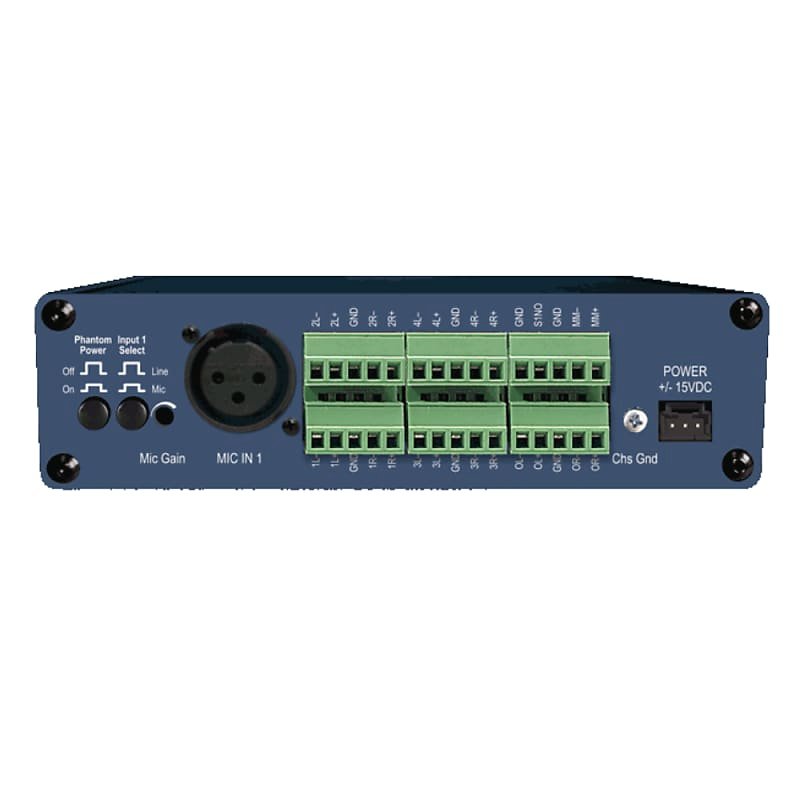

Channel audio switching is performed by professional level electronic analog switches. The inputs and outputs are supplied with removable screw terminal block connectors, while the microphone input is a female XLR jack. Each unit may be set on a desktop, mounted on a wall or rack-mounted with the optional RA-1 rack shelf for mounting up to three units in 1-RU.

Part number / SKU: BT-MIX-4  ·  Manufacturer: Broadcast Tools
