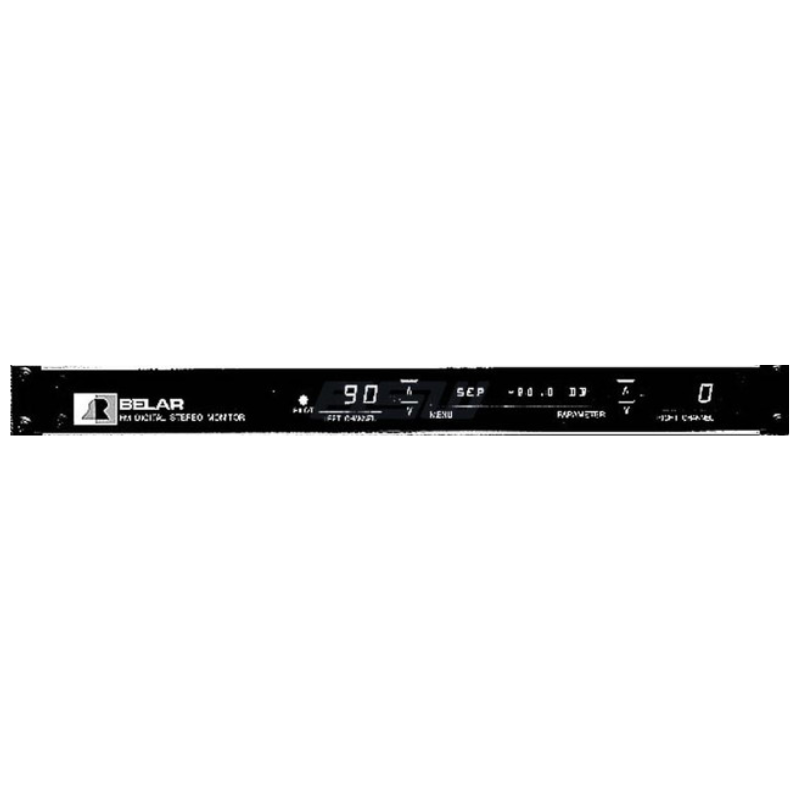

BELAR FMSA-1 FM Digital Stereo Modulation Monitor and Analyzer

Description

Looking for accurate monitoring and fast troubleshooting? The BELAR FMSA-1 FM Digital Stereo Modulation Monitor and Analyzer is a proven monitoring tool trusted by engineers who need to know their signal is right before listeners notice a problem.

Key Features

• The FMSA-1 is a DSP-based, microprocessor-controlled, FM Stereo Modulation Monitor/ Analyzer
• The FMSA-1 digitizes the composite baseband signal and decodes the stereo multiplex portion using digital signal processing techniques
• Unlike an analog design, a DSP-based design is immune to variations due to temperature or the aging and tolerance of components
• As a result, the FMSA-1 attains superlative performance while requiring virtually no adjustment
• By employing linear-phase FIR filters, the FMSA-1 eliminates phase distortion in the recovered audio
• This permits unprecedented accuracy in measuring modulation peaks on the Left, Right, L+R and L-R signals
• These performance advances result from the mathematically pure demodulation algorithm implemented by the FMSA-1 processors

Specifications & Details

All FMSA-1 measurements–peak modulations, injections, and dB ratios–are displayed on digital readouts. Remote operation of the FMMA-1/FMSA-1 pair in tandem with an automatic audio analyzer facilitates a fully automated stereo proof-of-performance. The FMSA-1 features user-defined parameters and settings for maximum flexibility. The two UP/DOWN menu keys are used to cycle the 16-digit alphanumeric display to the desired menu; the UP/DOWN parameter keys are then used to select the desired setting. The configuration can be saved to non-volatile memory in the unit in the event of a power loss.

Part number / SKU: BEL-FMSA-1  ·  Manufacturer: BELAR
