Description

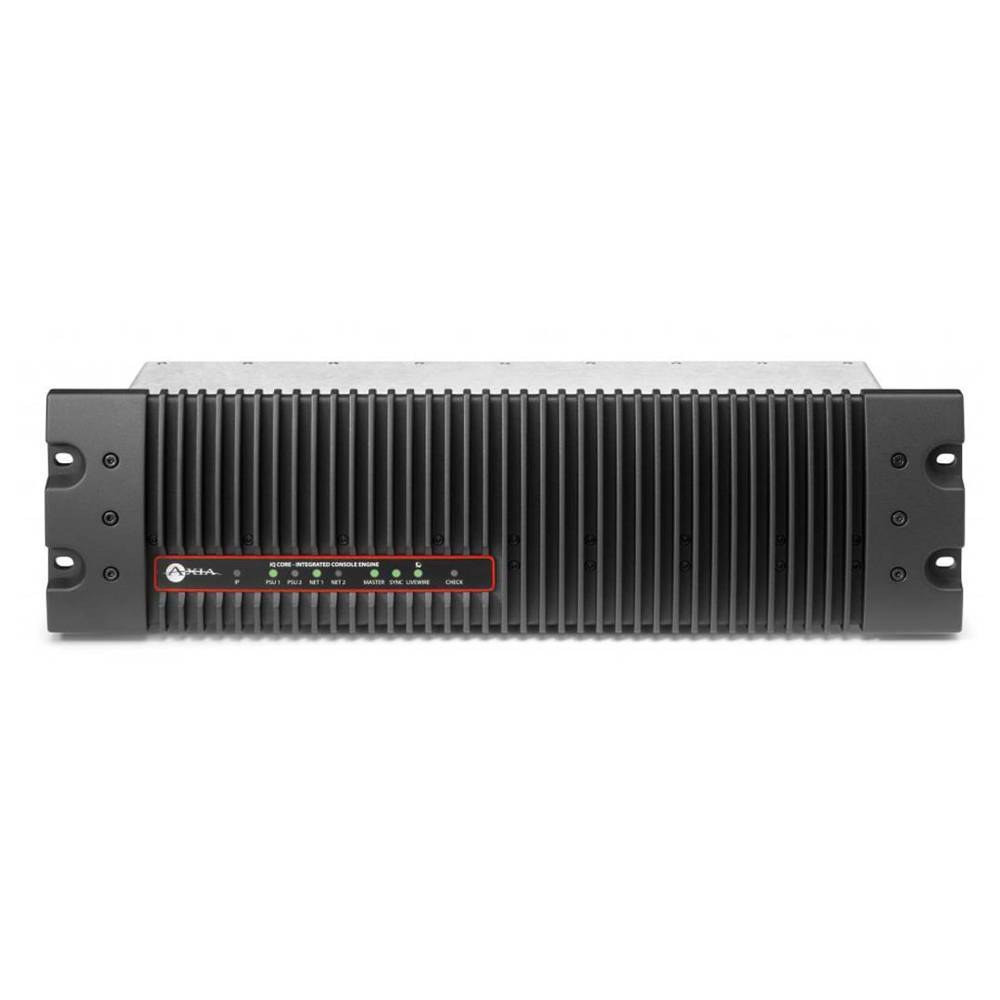

The Axia QOR.32 is an integrated console engine with DSP mixing, onboard I/O, GPIO, console power and a configuration-free Ethernet switch. Paired with an iQ surface, it’s a complete AoIP studio in two boxes.
Key Features
- DSP mixing engine for iQ consoles

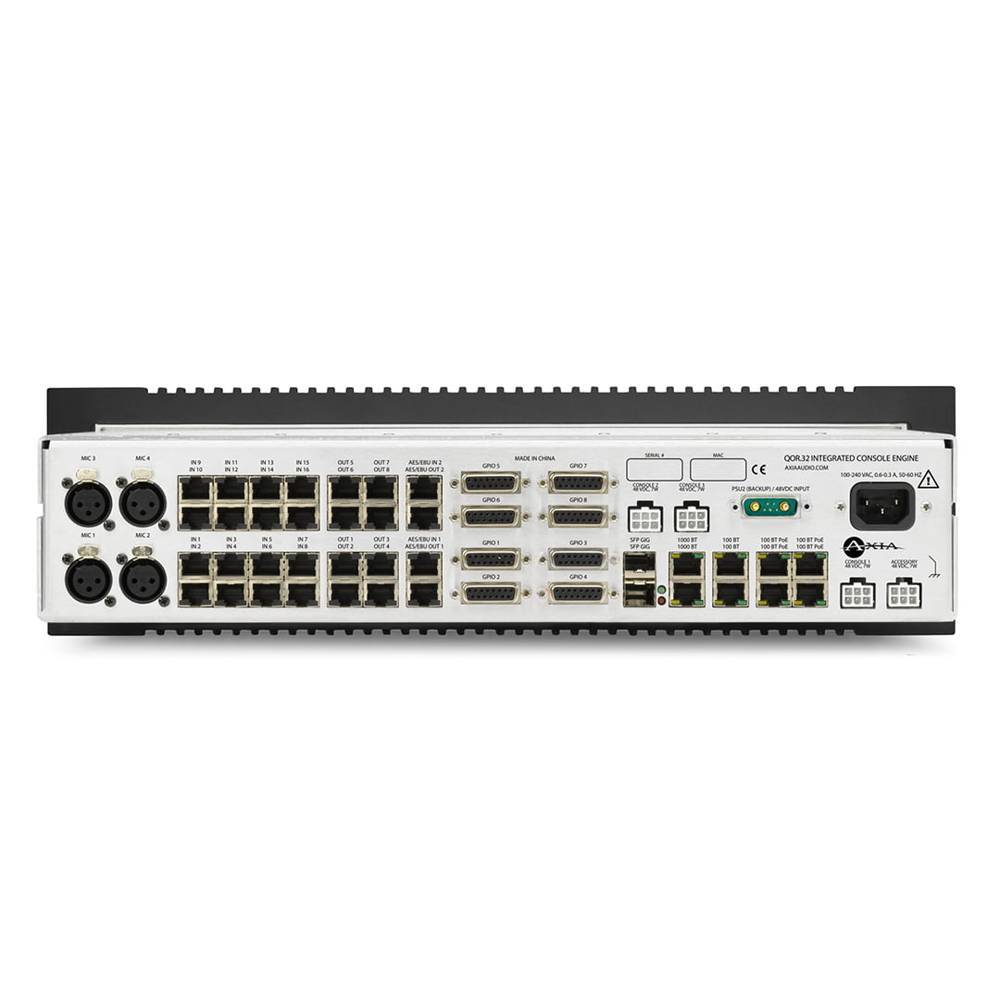

- Onboard mic, line and AES I/O plus GPIO
- Built-in console power supply
- Configuration-free Ethernet switch
- Livewire / AES67
Technical Details
4 CANBus ports provide for connection of up to 3 Axia iQ console frames, allowing construction of consoles up to 24 faders in size.</p> <p>By the way, that zero-configuration Ethernet switch is built specifically to handle IP-Audio. No settings to tweak, no configuration code to upload – just plug it in and go. The built-in configurable network gateway allows loading sources from other studios, while simultaneously exporting audio streams for use elsewhere; the gateway can be configured for 12-in, 4-out or 8-in, 8-out modes. You can even daisy-chain up to four QOR-based studios directly, for a self-contained network that doesn’t require an external Ethernet switch. No other console company makes AoIP this easy.</p> <p>For installations that require redundant backup power, there’s the Axia Console Power Supply. Connect it to the QOR.32 and you’ve added a redundant backup power supply with auto-switchover. Single-cable connection to QOR.32 console engine provides backup power with automatic switching. (Auto-sensing power supply, 90VAC to 240VAC, 50 Hz to 60 Hz. 250 Watts. Rackmount, 2RU.) Most redundant supplies protect only the console, but with Axia’s integrated console engine concept, the mixing engine, local audio I/O and network switch are protected as well.</p>
Part number / SKU: AXIQOR.32 · Manufacturer: Axia
