-Audio Input XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable -Audio Output Integrated into Multi/Micro USB jack -DC Input DC jack -DC Output No -EXT 50-pin N-o -HDMI Output HDMI connector (Type A) -Headphone Output Stereo mini mini jack (x1) -Remote Stereo mini-minijack (Φ2.5 mm) -SDI Output BNC type (x1), SD/HD/3G(Level-B) selectable -SMTPE 259M/292M/424M/425M standards -Speaker Output Monaural -USB Multi/Micro USB jack ( . . .

Read More

-Audio Input XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
-Audio Output Integrated into Multi/Micro USB jack
-DC Input DC jack
-DC Output No
-EXT 50-pin N-o
-HDMI Output HDMI connector (Type A)
-Headphone Output Stereo mini mini jack (x1)
-Remote Stereo mini-minijack (Φ2.5 mm)
-SDI Output BNC type (x1), SD/HD/3G(Level-B) selectable
-SMTPE 259M/292M/424M/425M standards
-Speaker Output Monaural
-USB Multi/Micro USB jack (x1)
-Video Output Integrated into Multi/Micro USB jack
-Composite
-1.0Vp-p、75Ω
-i.LINK No

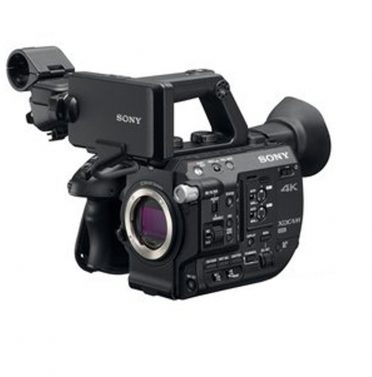

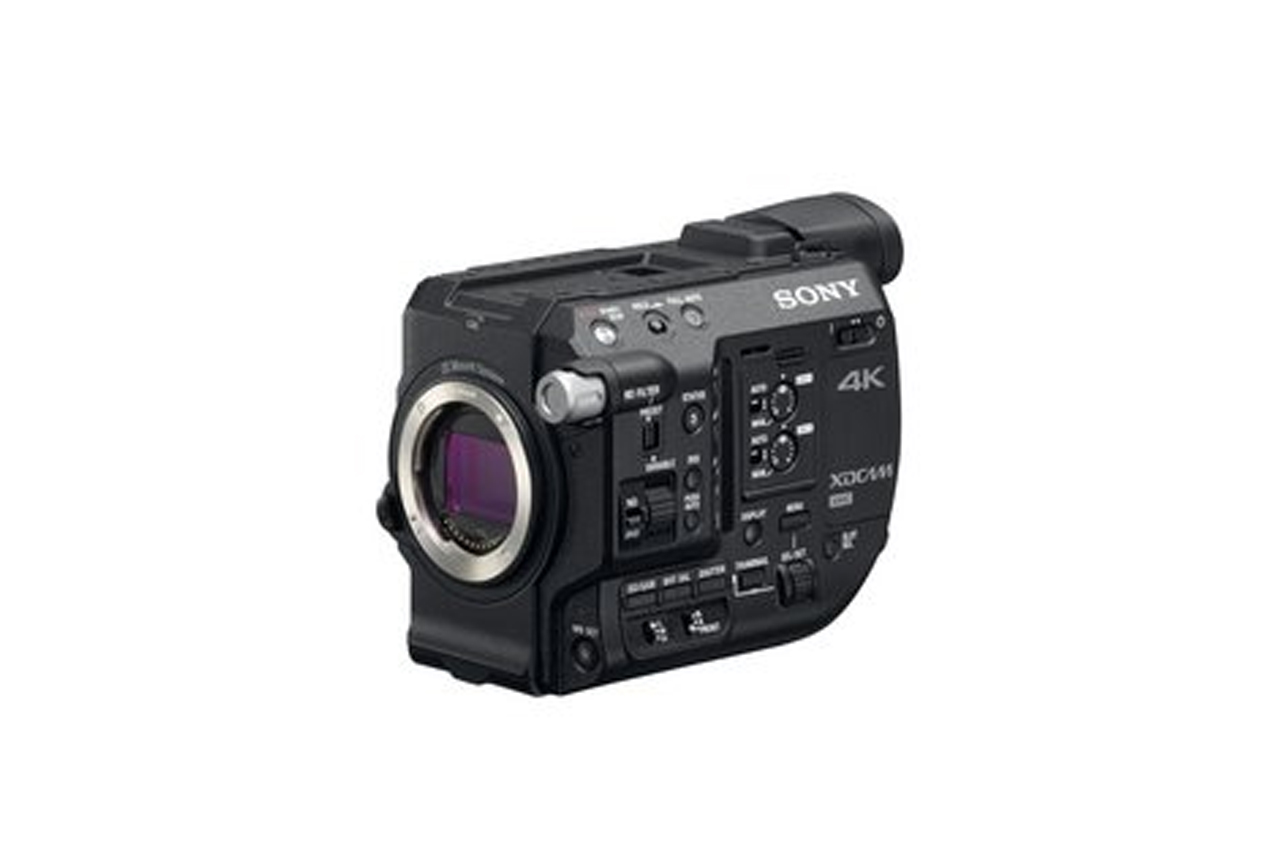

-Lens Mount E-mount
-Built-in LCD Monitor 3.5 inch type Approx. 1.56M dots
-Viewfinder 0.39 inch type OLED Approx. 1.44M dots
-Operating Temperature 32°F to 104°F
-Power Consumption Approx. 11.5W (while recording with LCD Off, EVF On when the external device connector is not used.)
-Approx. 12.3W (while recording with LCD On, EVF On when the external device connector is used.)
-Power Requirements DC 14.4V （battery pack)
-DC 12.0V (AC adaptor)

Read Less
