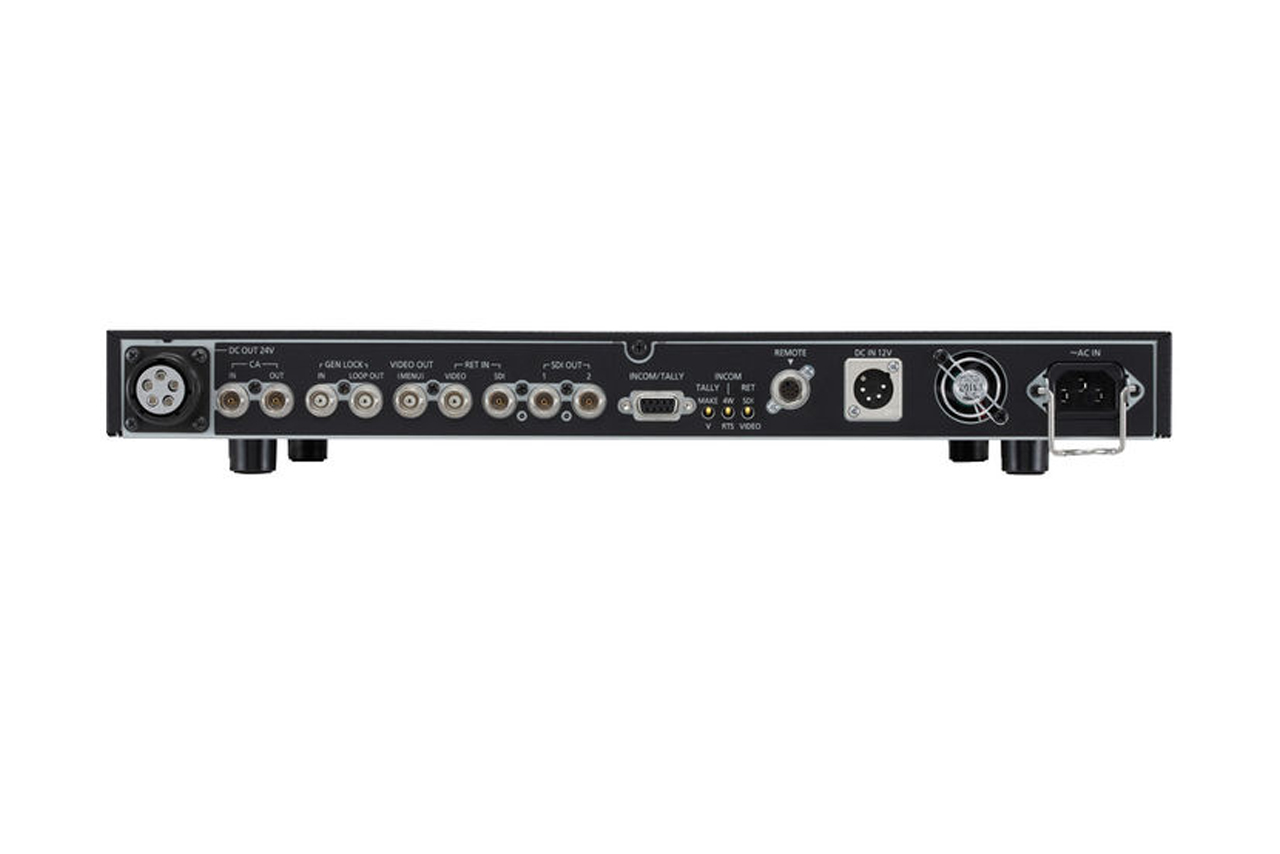

-Input Connectors Incom/Tally: 9-pin Dsub
-CA: BNCx1, from AG-CA300G
-Return Video: BNCx1
-Genlock: BNCx1
-DC 12V: XLRx1, 4-pin
-AC
-Remote: 10-pin
-Output Connectors SDI: BNCx2
-Video: BNCx1
-CA: BNCx1
-Genlock Loop: BNCx1
-DC 24V: 5-pin
-Incom: XLRx1, 5-pin female
Power Supply
-Input:
-100 – 240VAC, 50/60Hz, 1.6A – 0.6A
-12VDC, 1.1A
-Output:
-13VDC, 5A
-13VDC, 0.3A (Remote Power)
