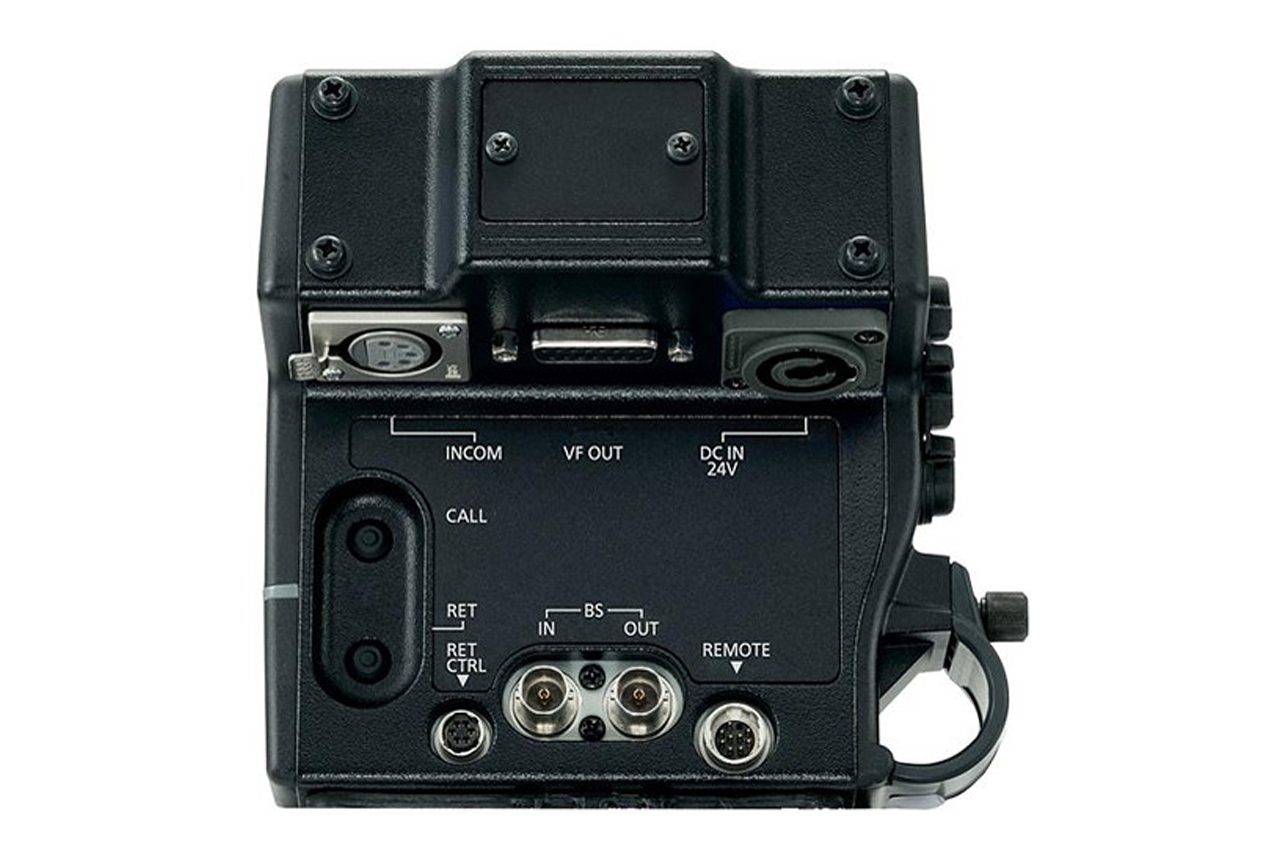

Input Connectors
-SDI: BNCx1
-BS: BNCx1
-DC: 5-pin
-Return Ctrl: 6-pin
-Battery: 2-pin
-Output Connectors BS: BNCx1
-Genlock: BNCx1
-Remote: 10-pin
-Incom: XLRx1, 5-pin female
-VF: 15-pin Dsub
-Return: BNCx1
-DC: 2-pin
Power Supply
-Input:
-24VDC, 4A
-12VDC, 6A
-Output:
-13VDC, 5A
