-Frequency Response (Bypass Mode): ±0.2 dB, 50 Hz – 9.5 kHz, or as determined by user-settable high-pass and low-pass filters.
-Noise: Output noise floor will depend upon how much gain the processor is set for (Limit Drive, AGC Drive, Two-Band Drive, and/or Multiband Drive), gating level, equalization, noise reduction, etc. The dynamic range of the A/D Converter, which has a specified overload-to-noise ratio of 110 dB, primarily governs it.
-The dynamic range of the digital signal processing is 144 dB.
-Total System Distortion (de-emphasized, 100% modulation): <0.01% THD, 50 Hz – 1 kHz, rising to <0.05% at 9.5 kHz. <0.02% SMPTE IM Distortion.
-Polarity The processing employs phase rotation to maximize loudness. Therefore, the polarity is frequency-dependent.

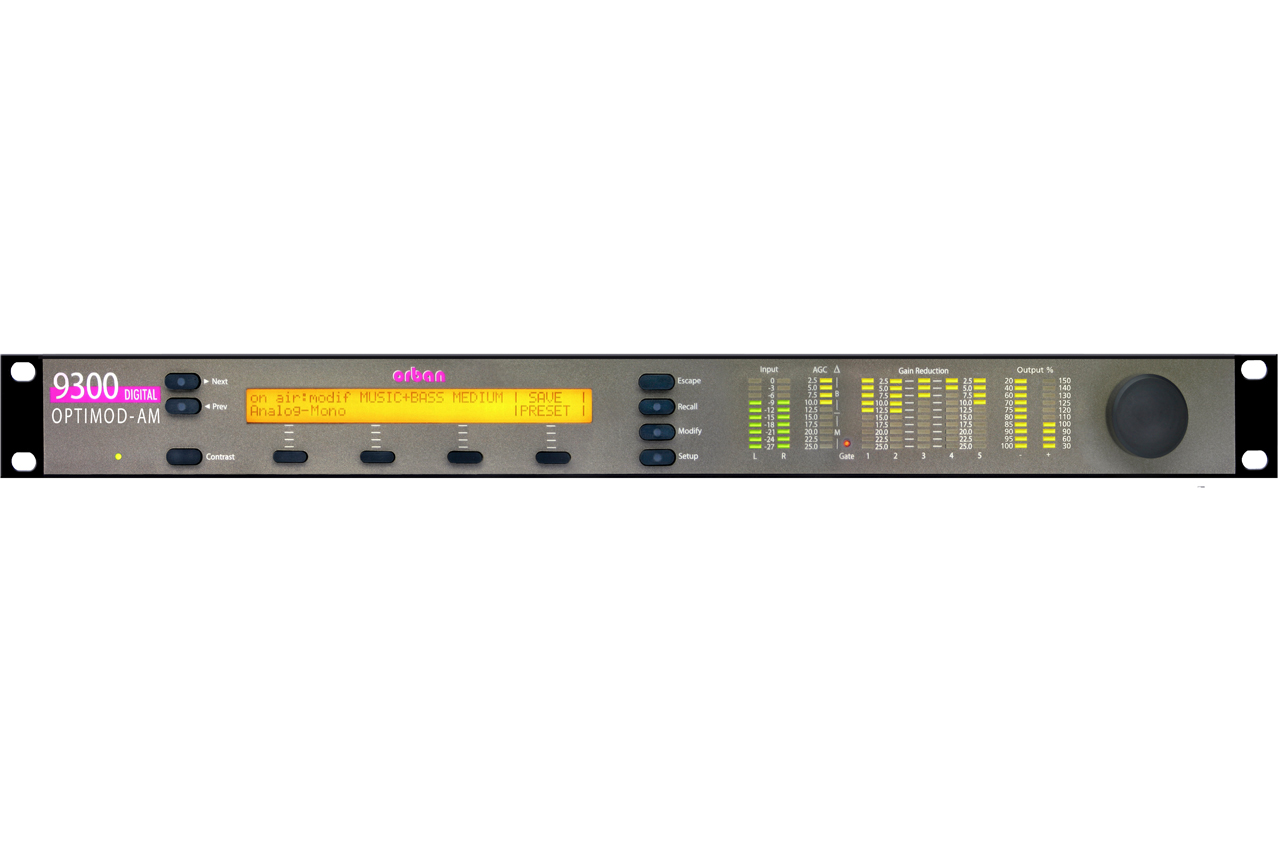

-Processing Sample Rate: The 9300 is a “multirate” system, using internal rates from 32 kHz to 128 kHz as appropriate for the processing being performed.
-Audio clippers operate at 128 kHz.
-Processing Resolution: Internal processing has 24 bit (fixed point) or higher resolution; uses Freescale DSP56367 DSP chips.
-Low-Pass Filter: 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0 or 9.5 (NRSC) kHz as set by user. Unit can be set up to comply easily with ITU-R and NRSC spectrum masks. Lowpass filter shape is parametric and can be set to be -0.1, -3, or -6 dB down at the cutoff frequency. This allows you to trade off brightness against audible filter ringing.
-High-Pass Filter: Constrained by user settable fifth-order “quasi-elliptical” highpass filter to 50, 60, 70, 80, 90, or 100 Hz. All filters have equal-ripple Chebychev-like) passbands and a 25 Hz notch for transmitter protection.
-Channel Configuration: Processing is monophonic.
