Analog Audio Input
-Configuration: Stereo / Dual-Mono.
-Impedance: >10 kΩ load impedance, electronically balanced. (No jumper selection available for 600 Ω. Through-hole pads are available on I/O module for user-installed 600 Ω termination.)
-Nominal Input Level:Software adjustable from –4.0 to +13.0 dBu (VU).
-Maximum Input Level:+27 dBu.

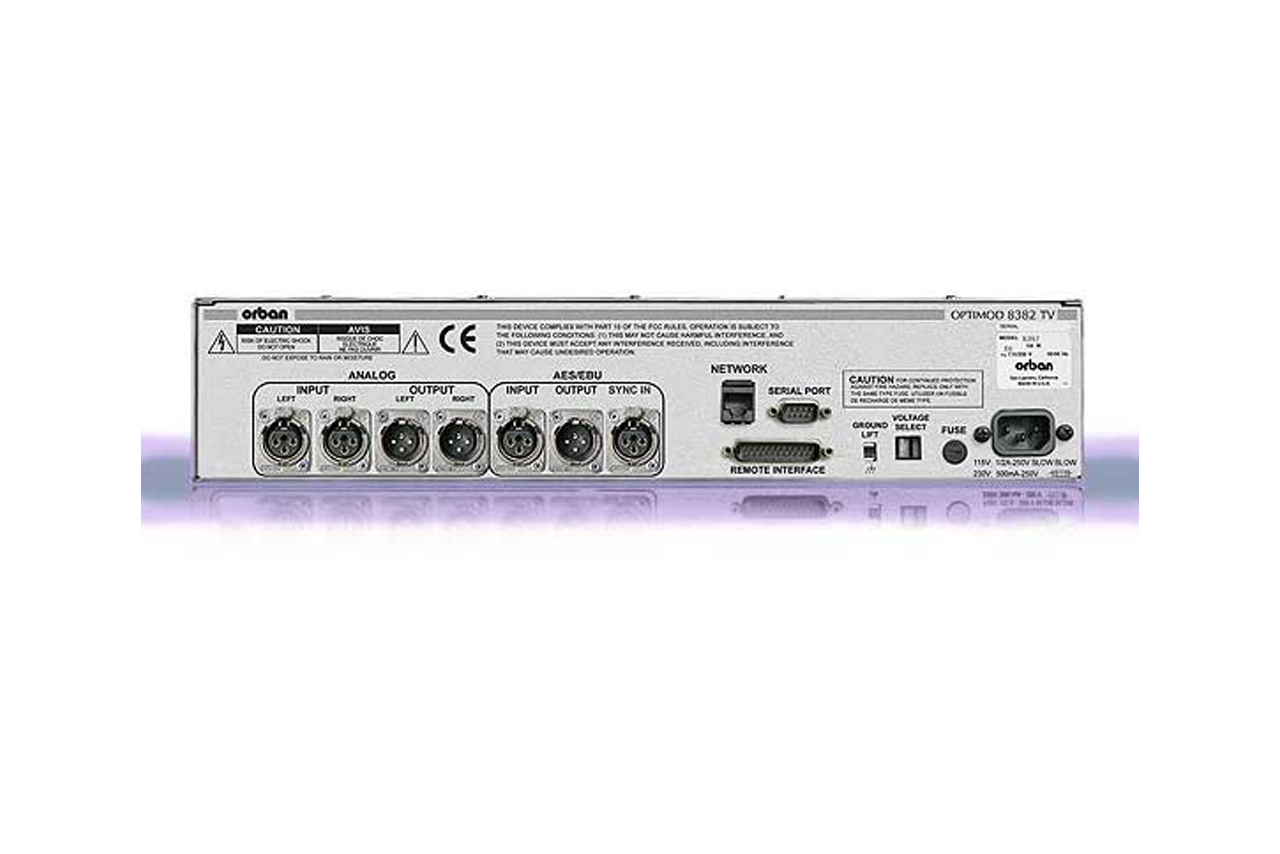

Connectors:Two XLR-type, female, EMI-suppressed. Pin 1 chassis ground, Pins 2 (+) and 3 electronically balanced, floating and symmetrical.
-A/D Conversion:24 bit 128x oversampled delta sigma converter with linear-phase anti-aliasing filter.
-Filtering: RFI filtered, with high-pass filter at 0.15 Hz (-3 dB).

Analog Audio Output
-Configuration:Stereo. Flat or pre-emphasized (at 50 µs or 75 µs), software-selectable.
-Source Impedance:50 Ω, electronically balanced and floating.
-Load Impedance:600 Ω or greater, balanced or unbalanced. Termination not required or recommended.
-Output Level:(100% peak modulation)
-Adjustable from –6 dBu to +24 dBu peak, into 600 Ω or greater load, software-adjustable.
-Signal-to-Noise:≥90 dB unweighted (Bypass mode, de-emphasized, 20 Hz – 15 kHz bandwidth, referenced to 100% modulation).
-L/R Crosstalk:≤ –70 dB, 20 Hz – 15 kHz.
-Distortion:≤0.01% THD (Bypass mode, de-emphasized) 20 Hz – 15 kHz bandwidth.
-Connectors:Two XLR-type, male, EMI-suppressed. Pin 1 chassis ground, Pins 2 (+) and 3 electronically balanced, floating and symmetrical.
-D/A Conversion:24 bit 128x oversampled.
-Filtering.RFI filtered.
