-Output Level +24dBm into 600 Ohm Balanced Loads
-Total Harmonic Distortion (THD) 0.001% Typical, 20Hz – 20kHz
-Slew Rate 13V/mS
-Frequency Response 30Hz – 20kHz, ±0.25dB
-Noise -100dBm EIN, 20Hz – 20kHz
-Gain 20dB Max, Each Output has 40dB Smooth Adjustment Range Going to Full Off
-Crosstalk 70dB Min @ 1kHz
-Output Impedance 400 Ohms Balanced, 200 Ohms Single-Ended, Split and RF Bypassed, AC Coupled
-Input Impedance 30 kOhms Active Balanced, Split and RF Bypassed

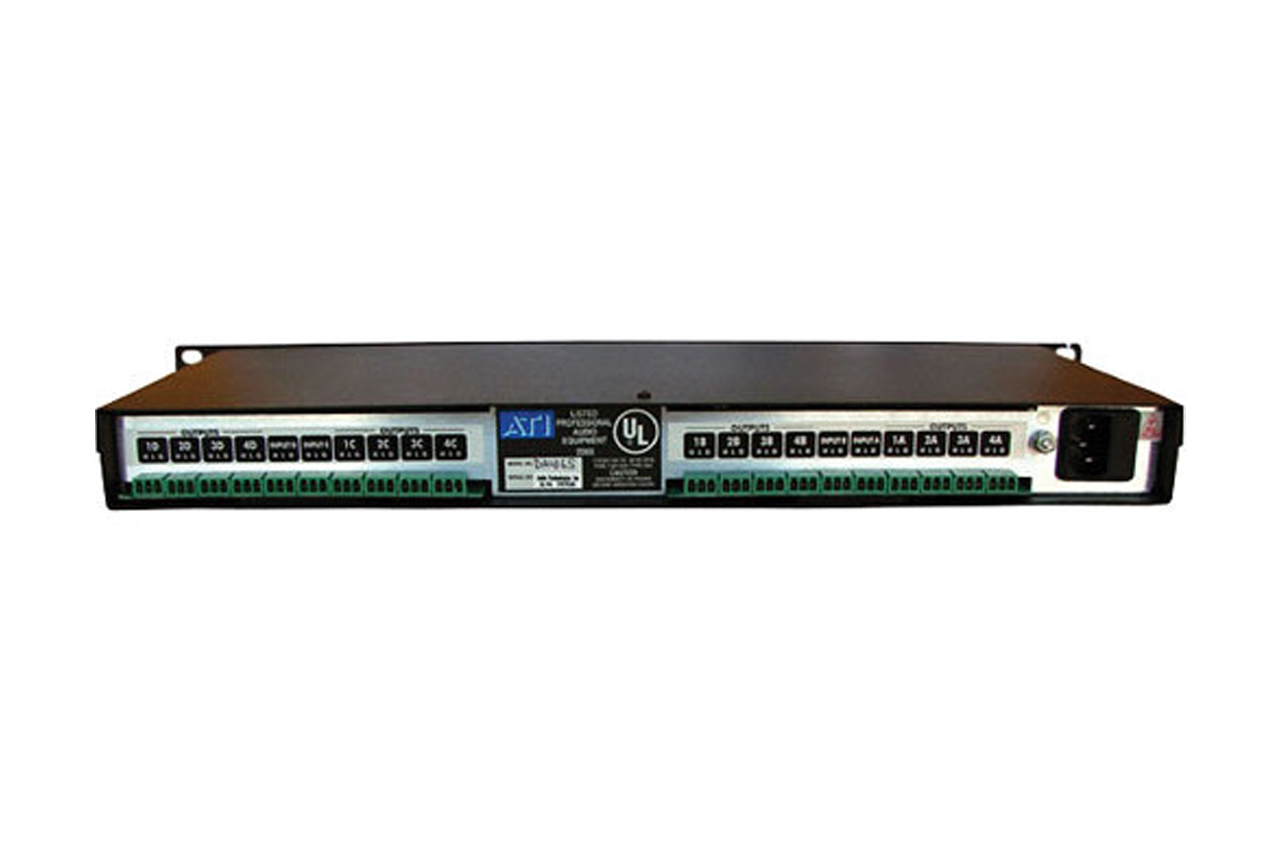

-Connectors 4 x Euroblock Inputs
-16 x Euroblock Outputs
-Hum Rejection 70dB CMR @ 60Hz
