Video & Audio
Video Input – Plug-and-play input of up to 4 live cameras
Network Inputs – Choose from any number of supported devices on the same network, including computers, IP sources, wireless Apple® AirPlay® devices, NewTek TalkShow, 3Play, webcams, and more
Audio Inputs – Embedded audio from each of the 4 live video inputs, plus 1/4” jacks for a microphone and stereo audio mixer
Video Outputs – Deliver to 4 different destinations, with 2 live video outputs and 2 video-only display ports (HDMI and DVI)
Network Outputs – Ethernet port for HD streaming live to the Web, publishing to social media platforms, distributing content to servers and storage locations, and output to other TriCaster systems
Audio Outputs – Embedded audio on both video outputs, plus 1/4” jacks for stereo output and headphones
Video Resolutions – NTSC: 1080/30p, 1080/60i, 720/60p, 720/30p, 480/60i (Multi-Standard also includes: NTSC-J 1080/30p, 1080/60i, 720/60p, 720/30p, 480/60i; and PAL 1080/25p, 1080/50i, 720/50p, 720/25p, 576/25i)
Real-Time
Streaming – HD live streaming with presets up to 720p, support for most common streaming profiles and custom multi-bitrate streaming profiles (including RTMP streaming and browser-based streaming applications), and auto-save of Webready stream file for video on demand (VOD) upload
Recording – Full-resolution recording of up to 4 simultaneous video input or output signals in QuickTime®, MPEG-2, AVI or H.264 file formats
Publishing – Upload video and images directly to YouTube, Facebook and Twitter, export content to FTP servers, and copy files to storage locations
Tools
Video Switching – 16-channel video mixer with 2 overlay channels for mixing sources and creating multi-layer compositions
Audio Mixing – Multi-channel software audio mixer for managing camera audio plus internal and external audio sources, outputs, recorded audio, stream audio, and headphones
Multimedia – 5 digital media players for video, graphics and sounds, plus 15 buffers for still images and titles
Mix Effects – 4 M/E channels, each with independent switcher and key layer, for advanced video mixing, compositing, effects and virtual sets
Transitions & FX – Built-in effects engine for transitions, animation stores, and real-time 3D video warping, plus included Animation Store Creator for custom effects
Virtual Sets – 30+ HD live virtual sets with multiple camera angles, shot presets, realistic virtual camera movements, and real-time reflections, plus support for custom holographic virtual sets
Macros – Record your favorite go-to settings, commands, or operation sequences, then create custom one-step shortcuts to simplify or automate control
Physical
Size – 4.6 x 9.2 x 7.9 in (11.7 x 23.4 x 20.1 cm)
Weight – 9 lbs (4.1 kg)

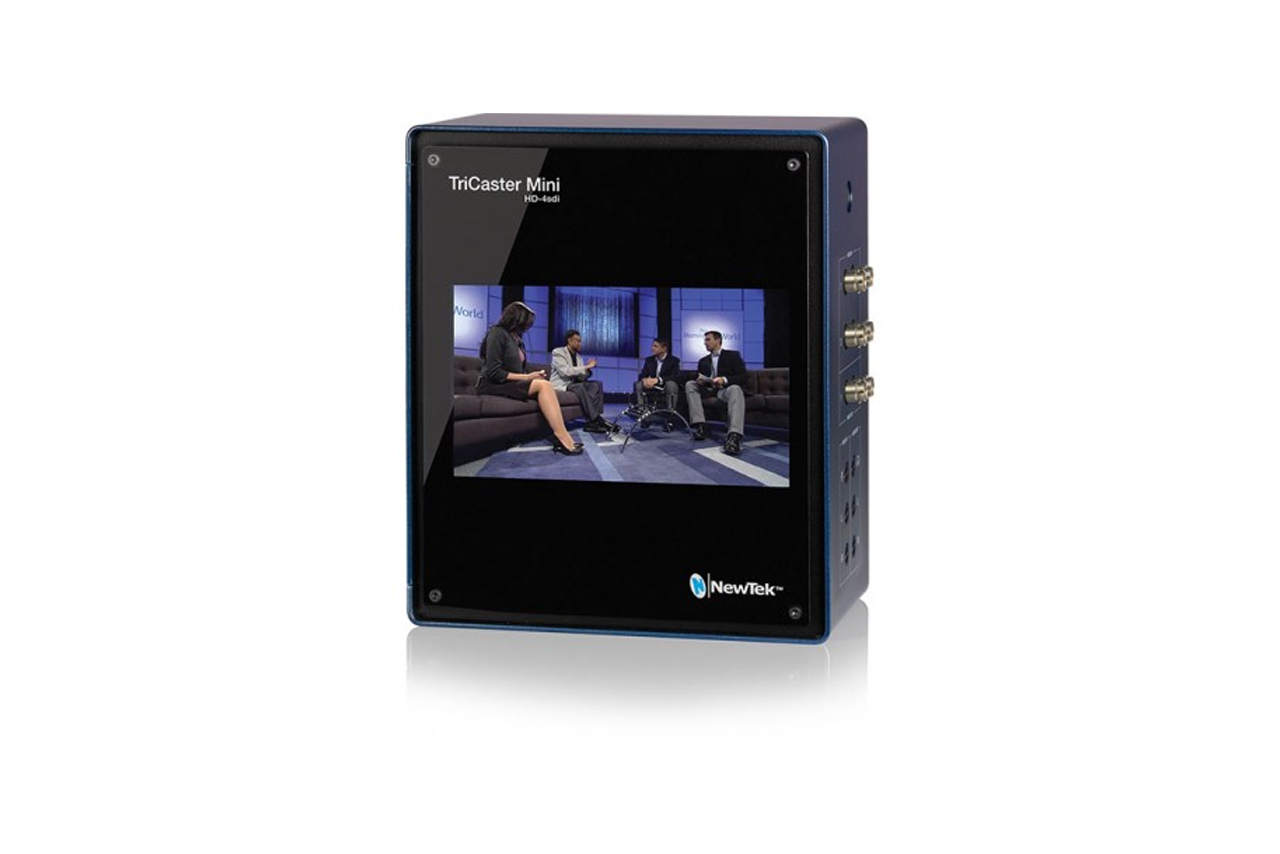

Case Displa- y – 7.0 in (17.8 cm) LCD screen for output display
Monitoring DVI and HDMI monitor outputs to display user interface and multiview preview, with selectable layouts and customizable video windows
Storage – 2 x 750GB internal drives accommodating a total of ~30 hours of HD video (varies by resolution and format; capacity expandable using external supported storage)

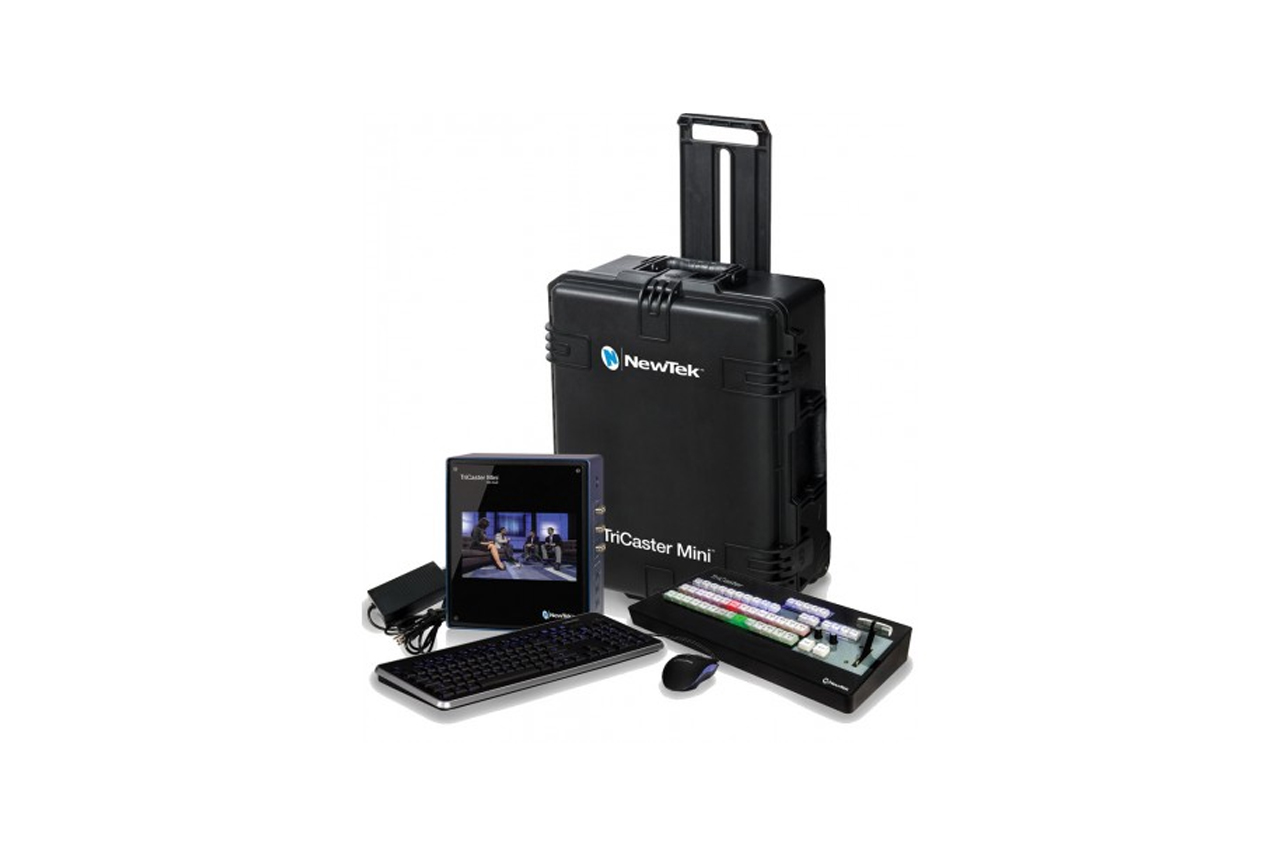

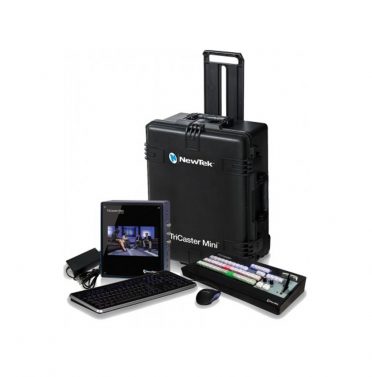

Optional Hardware Control Surface – Professional, studio-style workflow for live video productions of any size
