Distances 20 miles or greater
-External High Gain Antenna
-ISM 5.8 GHz unlicensed band
-U-NII 5.3 GHz unlicensed band
-Adaptive Power Control
-Powerful Reed-Solomon Error Correction
-1+1, 2+0 Redundancy
-Advanced diagnostics
-FREQUENCY RANGE ISM: 5.725 – 5.850 MHz
-U-NII: 5.250 – 5.350 MHz
-CAPACITY OPTIONS T1: up to 9
-E1: up to 8
-Ethernet: 27 Mbps
-Capacity also includes additional 1 Mbps full duplex Ethernet capacity for NMS traffic
-AVERAGE OUTPUT POWER ISM +5 to +23 dBm U-NII -18 to +5 dBm
-RECEIVE SENSITIVITY -84 dBm to -80 dBm (E1/T1), -84 dBm to -70 dBm (Ethernet)
-Receiver sensitivity varies per selected frequency and modulation

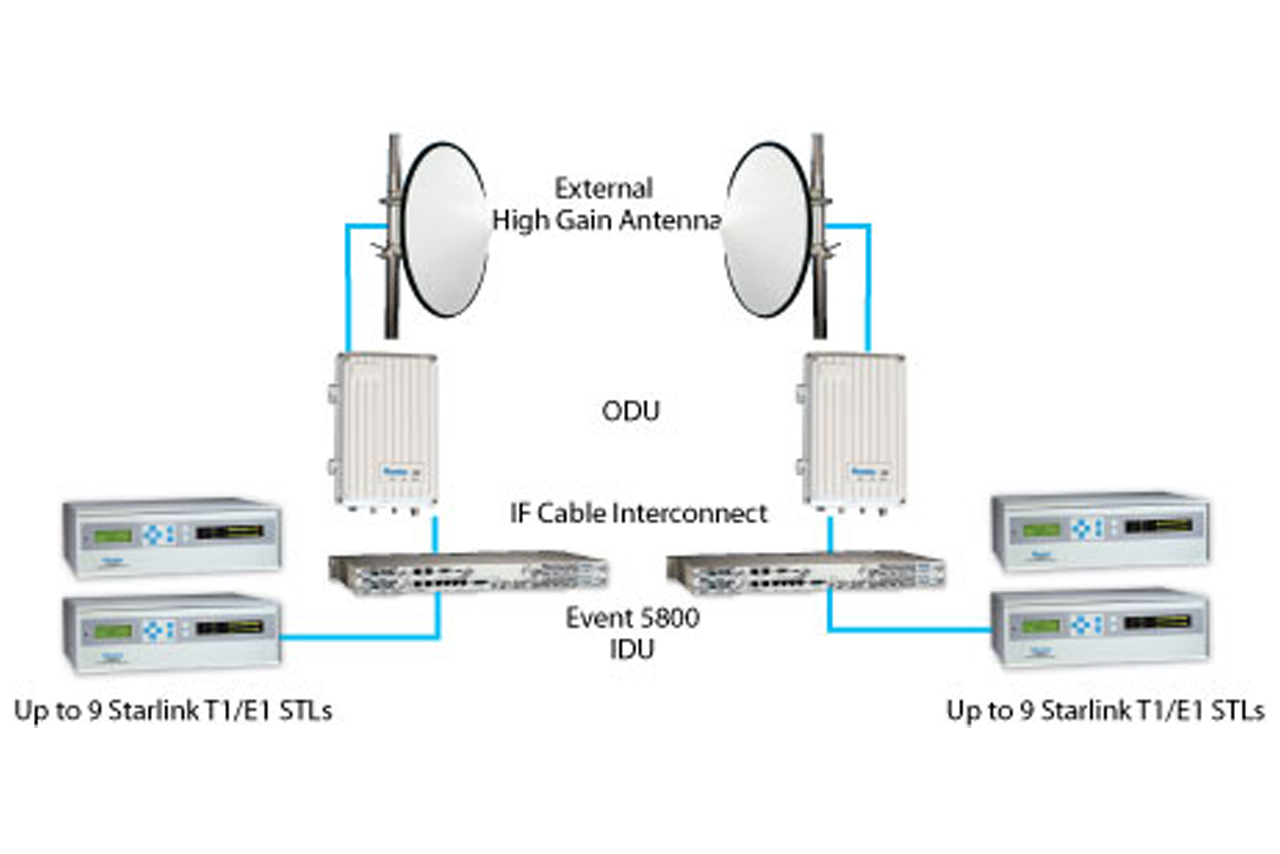

-ANTENNA Uses external antenna for higher gain
-ANTENNA CONNECTOR N-Type Female
-REGULATORY FCC Part 15 IC: RSS210
-POWER -48 Volts ±10%, -OPTIONAL FEATURES Integrated cross connect for E1/T1; add / drop mux for SDH; single chassis 1+1, 2+0 option
