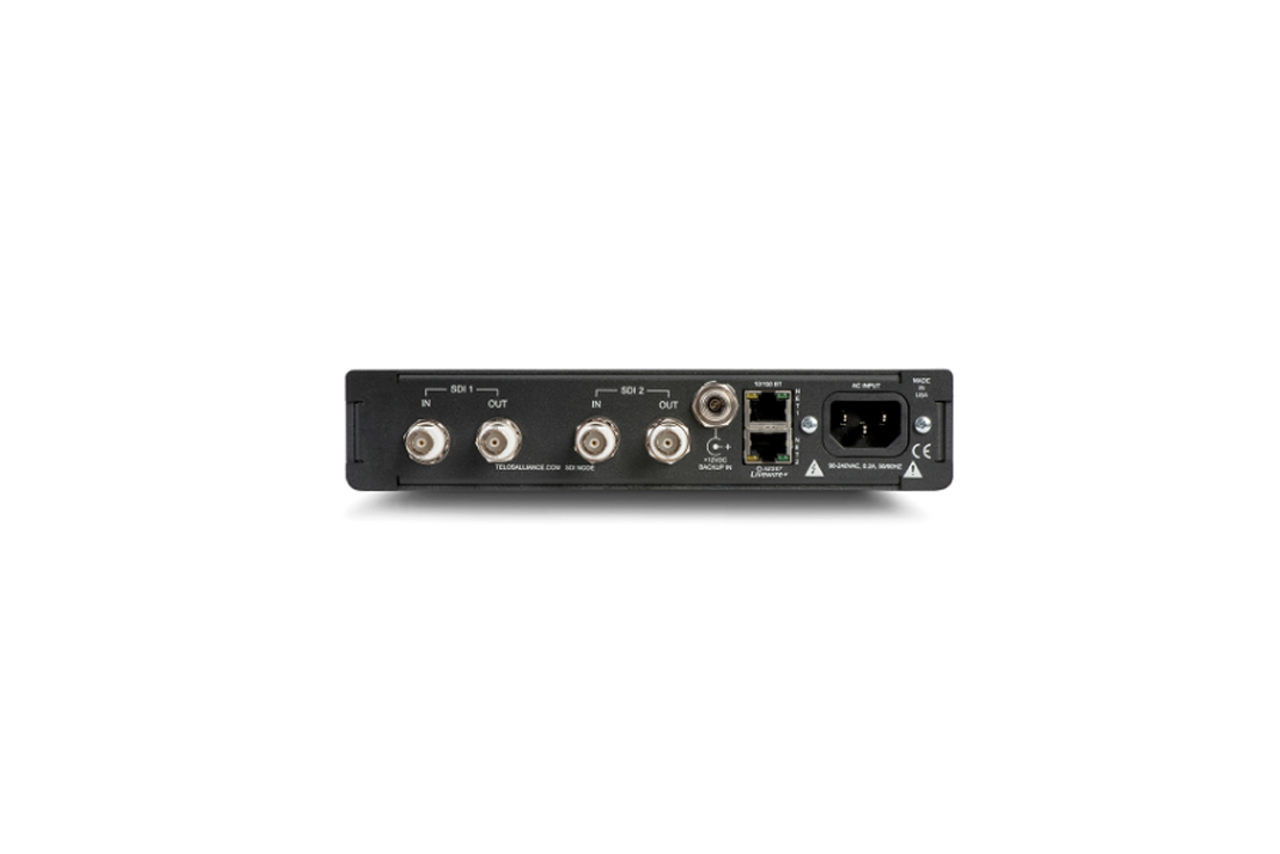

HD/SD-SDI I/O:
Auto-sensing HD/SD-SDI with de-embedding of up to 16 channels total; de-embedded audio can be routed to Livewire output and/or re-embedded to the SDI output with SMPTE 292M (HD-SDI) and SMPTE 259M (SD-SDI) support

Livewire+/AES67:
Full Livewire and AES67 compatibility

Reference:
Livewire at audio input, SDI-delivered audio clock at output. SDI clock can be provided to Livewire network if desired.

Ethernet:
Two RJ-45 100BASE-T connections available for management or AoIP interface.

Power Requirements and Consumption:
95-240 VAC, 50/60 Hz, 15W maximum. Redundant power sourcing available via available external +12VDC input
