-Number of M/Es 2
-Number of Inputs Standard: 16 (SDI)
-Maximum: 24 (with 2 x HSDI or 2 x HSDI-A)
-Video Output HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 8 x 75 Ω BNC (2 x PGM, 6 x AUX), 1 x HDMI (AUX) (HDCP, AUDIO incompatible)
-Number of Outputs Standard: 9 (8 x SDI, 1 x HDMI)
-Maximum: 13 (with 2 output cards)
-AUX Outputs Standard: 6
-Maximum: 8
-Signal Processing 4:2:2 Digital component
-Quantization HD/SD-SDI: 10-bit
-GPI IN: 1 x 15-pin D-sub (female), (inch screw) 10 inputs
-TALLY OUT: 1 x 25-pin D-sub (female), (inch screw) 20 outputs
-ARCNET: 1 x 75 Ω BNC, loop-through (Terminate with 75 Ω terminator if unused)
-Ethernet: 100Base-TX/1000Base-T: 1 x RJ-45
-Temperature / Humidity 32 to 104°F (0 to 40°C) / 30 to 90% (no condensation)
-Power 100 to 240 VAC ±10%, 50/60 Hz
-Consumption Maximum 28 W
-Consumables Cooling Fan: Replace every 4 years
-Power Unit: Replace every 5 years
-Battery: Replace every 5 years
(if used 24 hours a day at room temperature)

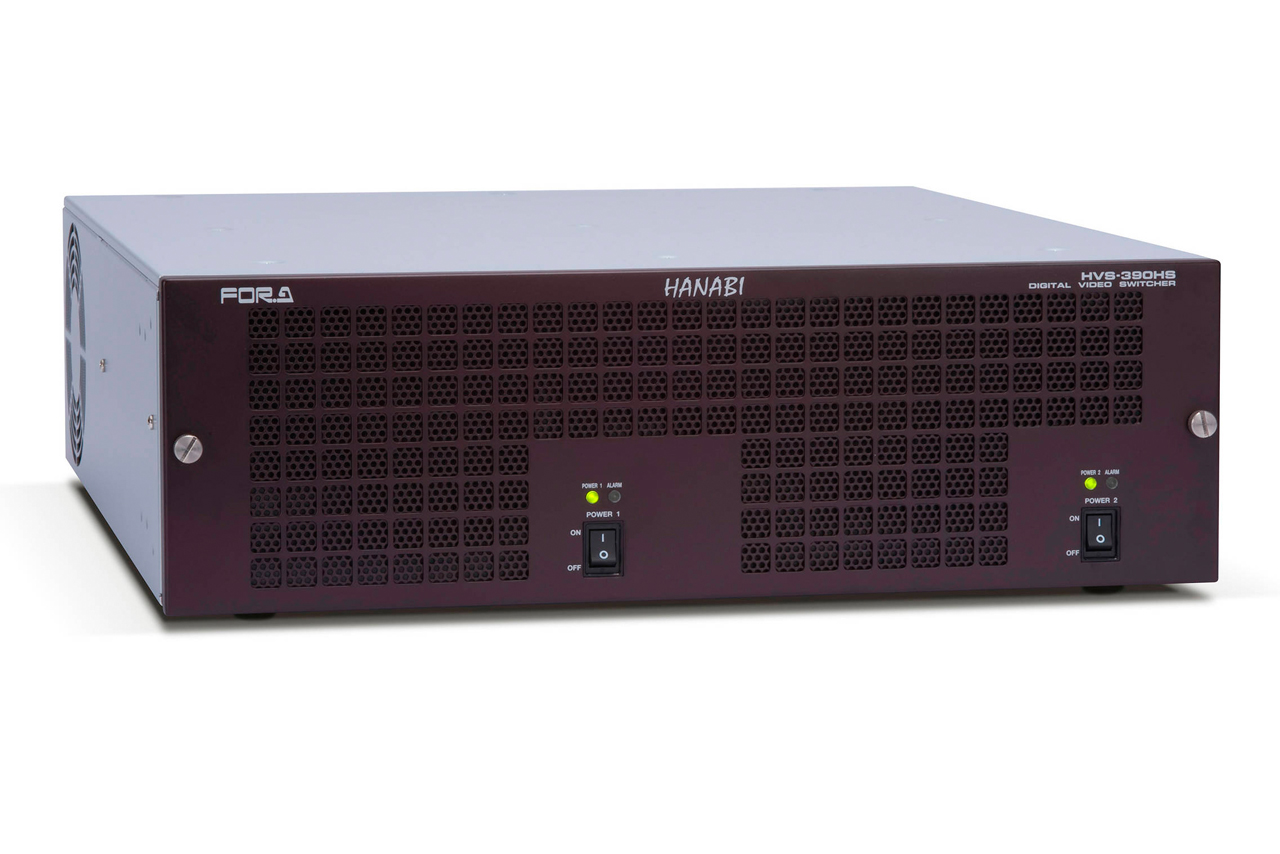

-Dimensions (W x D x H) HVS-390HS Switcher: 16.9 x 17.7 x 5.2″ (430.0 x 450.0 x 132.0 mm)
-Weight Only Main Unit: Approximately 33.1 lb (15.0 kg) (standard)
-Main Unit with full option: Approximately 42.3 lb (19.2 kg)
