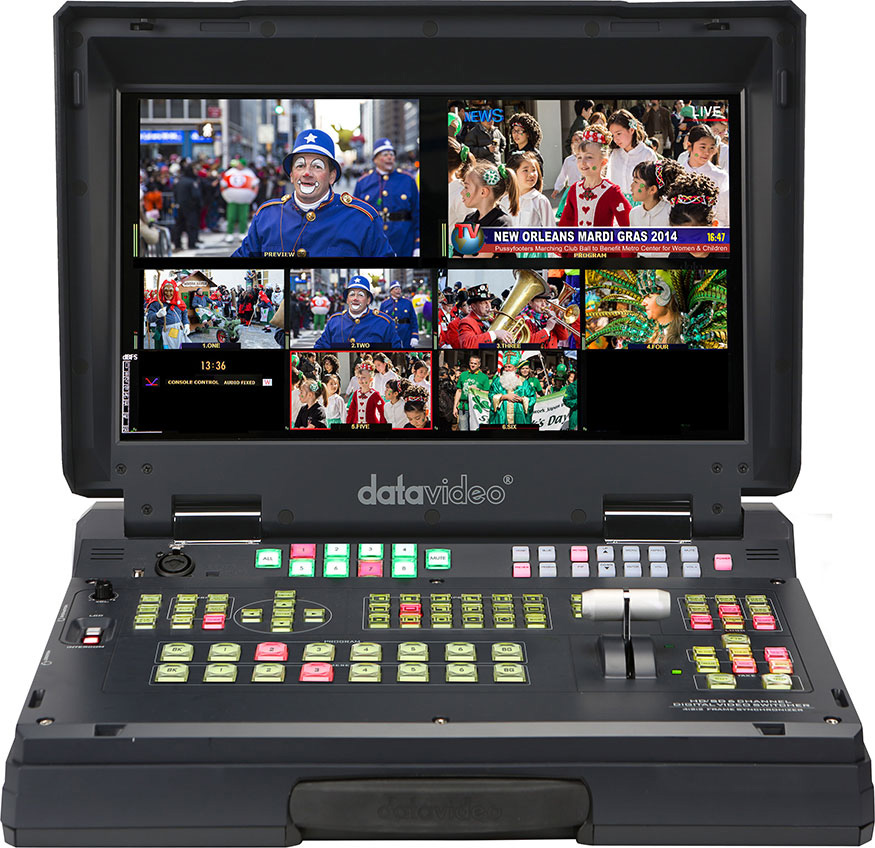

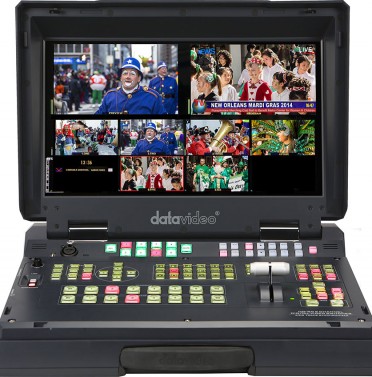

The HS-2200 is a cost effective 6-input, 10-bit broadcast-quality hand carry mobile switcher, which accepts 1920x1080i resolution from HD-SDI and HDMI connections. It is designed for live events and TV programs that need to mix a variety of video and audio sources. The HS-2200 is a lightweight, portable and powerful featured mobile studio solution. It includes a 17.3-inch video monitor for the multi-view as well as a built-in title creator for . . .

Read More

The HS-2200 is a cost effective 6-input, 10-bit broadcast-quality hand carry mobile switcher, which accepts 1920x1080i resolution from HD-SDI and HDMI connections. It is designed for live events and TV programs that need to mix a variety of video and audio sources. The HS-2200 is a lightweight, portable and powerful featured mobile studio solution.

It includes a 17.3-inch video monitor for the multi-view as well as a built-in title creator for CG functionality. The HS-2200 comes with an 8-channel intercom system that comes with 4x belt packs, headsets, and tally lights for communicating with the camera crew. HS-2200 is great for outdoor productions, or on-the-go video studios, like conference centers. It’s also great for use in houses of worship and in schools.

Features:

• Built-in TC-200 Title Creator: Connect a CG-200-equipped laptop to the HS-2200 to create CG.
• 16 Wipe Effects: HS-2200 is made with 16 wipe effects, as well as mix(dissolve).
• Included Tally Light System: HS-2200 includes 4x tally lights
• Included Intercom System: The included intercom system comes with headsets and belt packs for 4 camera persons.
• Dual PiP: HS-2200 comes standard with Dual Picture-in-Picture Functionality.
• Freeze: HS-2200 can perform Freeze Frame.
• Lumakey: HS-2200 supports Lumakey

Specifications:

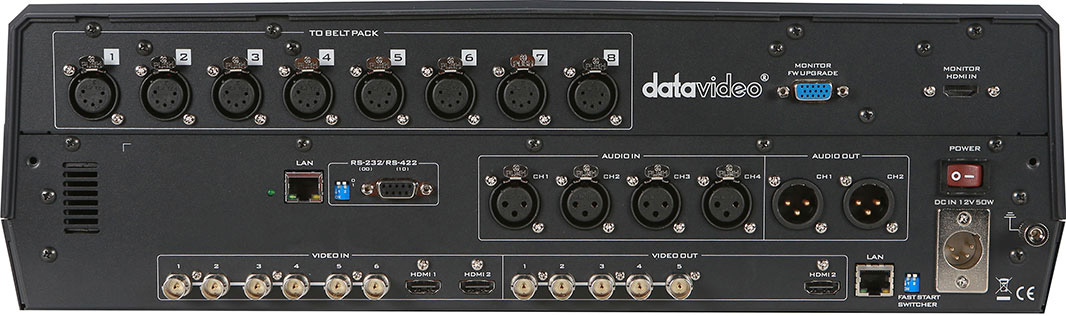

• Connections
• Video
• Inputs:
• Input1: HD-SDI
• Input2: HD-SDI
• Input3: HD-SDI
• Input4: HD-SDI
• Input5: HD-SDI or HDMI
• Input6: HD-SDI or HDMI
• Output: 6x HD-SDI**, 2x HDMI (Multi-view)
• ** = Outputs can be Program, Program with Logo, Program With Logo and Titles, Preview, or Aux
• Audio
• Input: 4x XLR (mono)
• Output: 2x XLR (mono)
• Embedded audio is supported. Audio may be embedded into the SDI stream.
• Control
• 1x RS-232/422
• Tally
• 1x Tally Output
• Supported HD-SDI Video Formats
• 1080i 50/59.94/60
• 720p 50/59.94/60
• Supported HD-SDI Input Resolutions for Computers
• 1920x1080i 50/59.94/60
• Supported HDMI Input Resolutions for Computers
• 1920x1080i 50/59.94/60
• 1280x720p 50
