– Internal audio activity/silence sensors monitor all four-output channels. Each is equipped with front panel “ACT” LED indicators; adjustable alarm delay and restore duration. Sensitivity is factory set at -34db.
– Front panel input selection switches are provided for each input channel with separate output indicator LED’s
– Power-up selection of inputs to outputs, mute or last source selected.
– Sixteen user configured macros
– Most configuration options via rear panel dipswitches.
– 24 input GPI port (Remote Control or PIP) with LED indicator.
– 16 open collector channel status outputs or programmable via burst commands.
– 8 spst relay outputs. Programmable via burst commands.
– Multi-turn input level controls.
– Single turn output level controls
– Electronically balanced stereo inputs.
– Electronically balanced stereo and monaural outputs.
– Remote control of front panel functions and status.
– Multidrop RS-232 or RS-485 serial port with data activity LED.
– Multiple units may be cascaded to expand inputs.
– Depluggable screw (EURO) terminals for ALL connections.

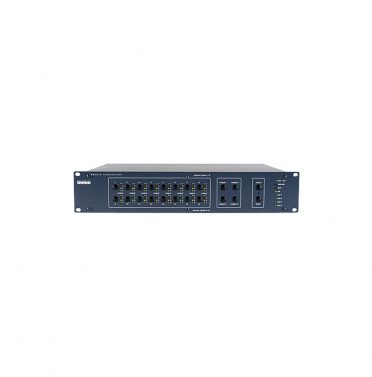

– 2-RU chassis
