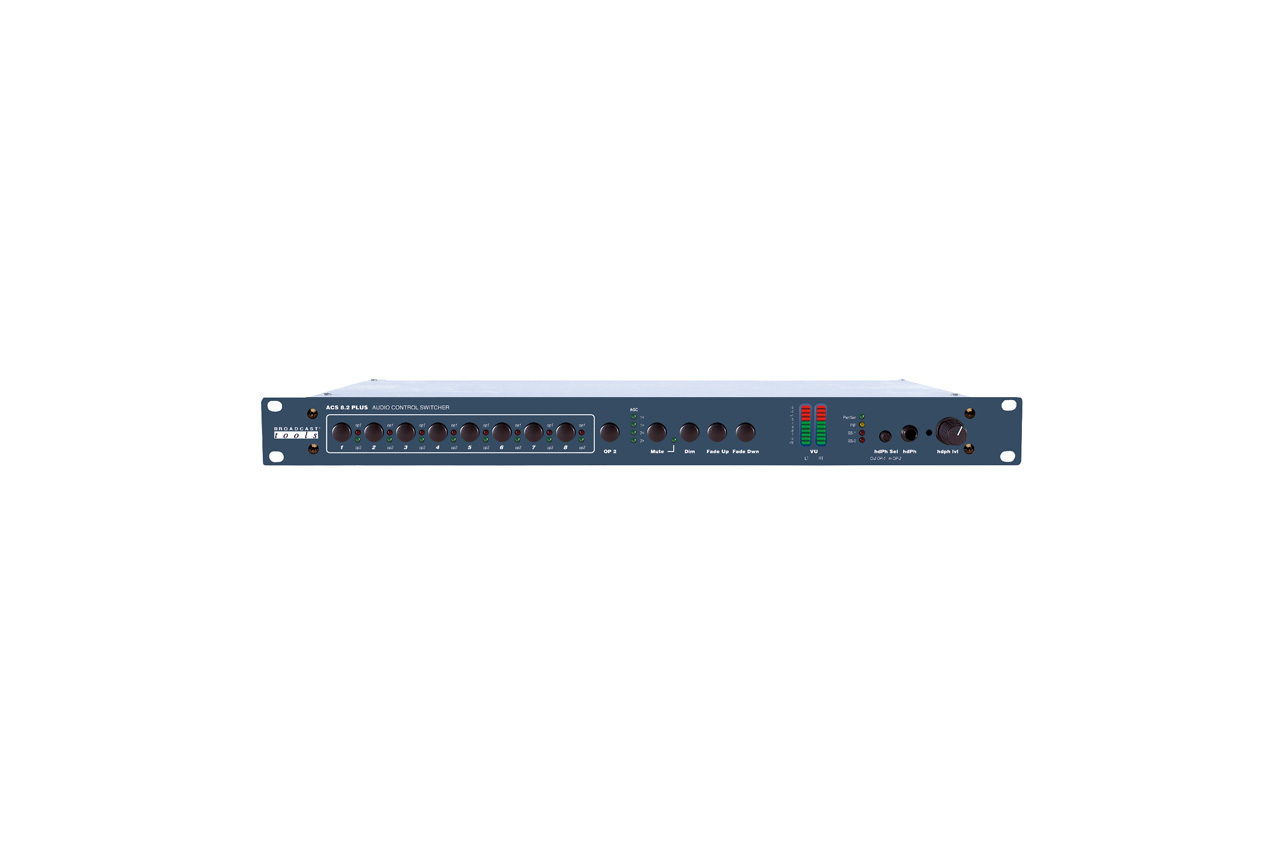

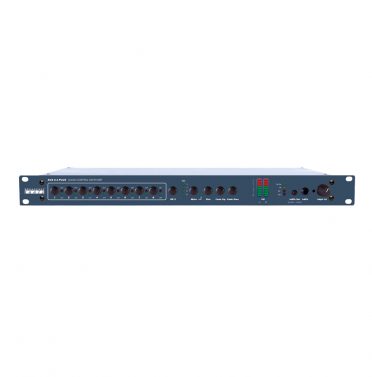

Stereo LED VU meters with front panel output selection switch.
– Stereo headphone amplifier with front panel output selection switch, headphone jack and level control.
– Internal silence sensors monitor both output channels. Each is equipped with front panel LED indicators; separate SPDT SS alarm relays, adjustable alarm
delay and restore duration.
– Front panel input selection switches are provided for each input channel with separate output indicator LED’s
– Power-up selection of inputs to outputs, mute or last source selected.
– 16 input GPI port (PIP or Remote Control) with LED indicator.
– Eight open collector channel status outputs or programmable via burst commands.
– Eight SPDT relay outputs with multiplex function on output two. Programmable via burst commands.
– Optional AGC function on each output channel.
– Logic functions via microprocessor and non-volatile memory
– Most configuration options via rear panel dipswitches.
– Multi-turn input and output level controls.
– Electronically balanced stereo inputs.
– Electronically balanced stereo and monaural outputs.
– Multi-drop RS-232 serial port with data activity LED.
– Multiple units may be cascaded to expand inputs.
– 1-RU chassis.
