Featuring 12G-SDI and HDMI connections, the Blackmagic Web Presenter will down convert any SD, HD and Ultra HD sources and make them look like a 720p USB webcam. As all streaming software works with webcams, Blackmagic Web Presenter also makes it easy to work with any streaming software, but with dramatically higher quality. Streaming in 720p ensures customers get the quality of HD and a 16:9 aspect ratio, but with very low data rates so uplinking streams to the internet is easy from any computer.

Blackmagic Web Presenter can also live switch programs using its built in 2 input production switcher when the optional Teranex Mini Smart Panel is installed, making it a full live production solution for location broadcast.

It is designed for both the high end broadcaster as well as a new generation of web broadcasters. Traditional broadcasters can use Blackmagic Web Presenter to get content online quickly to a global audience from any location. AV professionals can create high quality live streams of seminars and conferences, educators can stream school performances and recitals to family members around the world, and gamers can share their gameplay with massive online communities of players.

The Web Presenter features Teranex conversions that provide high quality image scaling for incredible looking web video. Incoming SD, HD and Ultra HD sources are automatically converted to 720p and output via USB to the computer for streaming on the internet. Converting sources to 720p is ideal for streaming because it delivers HD resolution and incredible quality at the lowest possible data rate. If the streaming software detects a slow internet connection, it can command Blackmagic Web Presenter to reduce the frame rate to 20, 15, 10 or even 5 frames per second.

Customers using Blackmagic Web Presenter don’t need to install any additional drivers because it is a standard UVC and UAC compatible USB video device. That means Mac, Windows, Linux and even Chromebook computers will automatically recognize Blackmagic Web Presenter as a standard webcam. This allows customers to use professional cameras to get far superior video quality, while maintaining compatibility with all of their existing software because the computer sees it as a simple webcam. Blackmagic Web Presenter works with software such as Open Broadcaster and XSplit Broadcaster, as well as popular sites like YouTube Live, Facebook Live, Skype, Twitch.TV, Periscope and more.

Features:

• Converts any SDI or HDMI source to USB webcam video in 720p HD format.
• No drivers required, works with popular streaming software such as Open Broadcaster, XSplit Broadcaster, YouTube Live, Facebook Live, Periscope, Twitch.TV and more.
• Supports all SD, HD and Ultra HD input sources up to 2160p60.
• 12G-SDI input with 12G-SDI loop output.
• 12G-SDI program output, ideal for recording masters when doing live switching.
• HDMI 2.0 input with independent HDMI loop output.
• HDMI video input re-sync for live switching.
• XLR balanced mic/line level audio input.
• Consumer HiFi connections for 2 channels of audio input.
• Teranex quality down converter.
• Built in 2 input switcher when used with optional Teranex Mini Smart Panel.
• Desktop design or can be rack mounted using the Teranex Mini Rack Shelf.

Specifications:

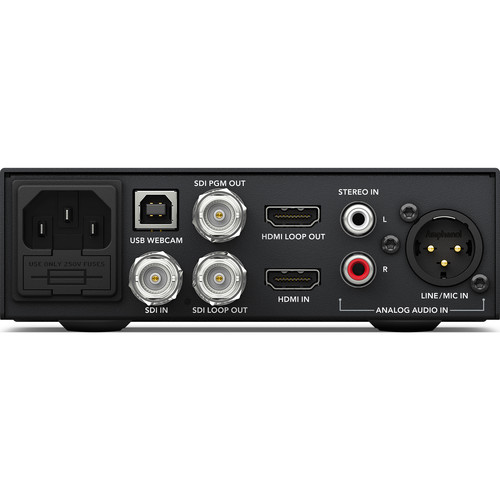

• Connections
• SDI Video Input: 1
• SDI Video Output: 1x program out, 1x loop out.
• SDI Rates: 1.5G, 3G, 6G, 12G
• HDMI Video Input: 1
• HDMI Video Output: 1x loop out
• Analog Audio Inputs: 1x XLR mic and line, 2x HiFi analog.
• Total Audio Outputs: None, embedded audio only.
• USB Webcam: 1
• 12G-SDI: 1 X BNC input, 1 X BNC Loop out, 1 X BNC monitor, (2 channel embedded audio)
• HDMI 2.0: 1 X Input, 1 X loop out, (2 channel embedded audio)
• RCA: 2 X HiFi Analog audio input
• XLR: 1 X input supporting both microphone and line levels
• USB 2.0: 1 X Type B
• Mini USB: 1 X for software updates

  HDMI Format Support

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• UHD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

  12G SDI Format Support

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30, 1080i50, 1080i59.94, 1080i60
• UHD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

  General

• Operating Software:Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later, Windows 8.1 64-bit or Windows 10 64-bit, Linux
• Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 – 240V AC Input.
• Power Consumption: 24 watts
• Operational Voltage Range: 90 – 240V AC
• Weight: 1.4 lbs.
• Dimensions: 6.69″ (L) x 5.51″ (W) x 1.75″ (H)
• Operating Temperature: 41° – 122°F
• Storage Temperature: -4° to 140° F
• Relative Humidity: 0% to 90% non-condensing

Item Includes:

• Web Presenter
• SD card with software and manual

Warranty:

• 3 Years
