Henry Eng AES Digiswitch 3X1

Description

HENRY ENGINEERING’s Henry Eng AES Digiswitch 3X1 gives engineers and studios finishing a professional install a clean, dependable installation in a accessory designed for real-world professional use.

Key Features

• AES DigiSwitch 3X1 is a three-input switcher for AES digital audio signals
• It accepts up to three AES audio sources, selecting one that is sent to the AES output
• AES DigiSwitch 3X1 utilizes sealed relays with gold-plated contacts for signal switching
• There is no active circuitry in the signal path, hence the AES stream remains bit-accurate with no added delay or latency
• The passive switching also permits the unit to be used “in reverse” as a router, sending an AES source to one of three destinations

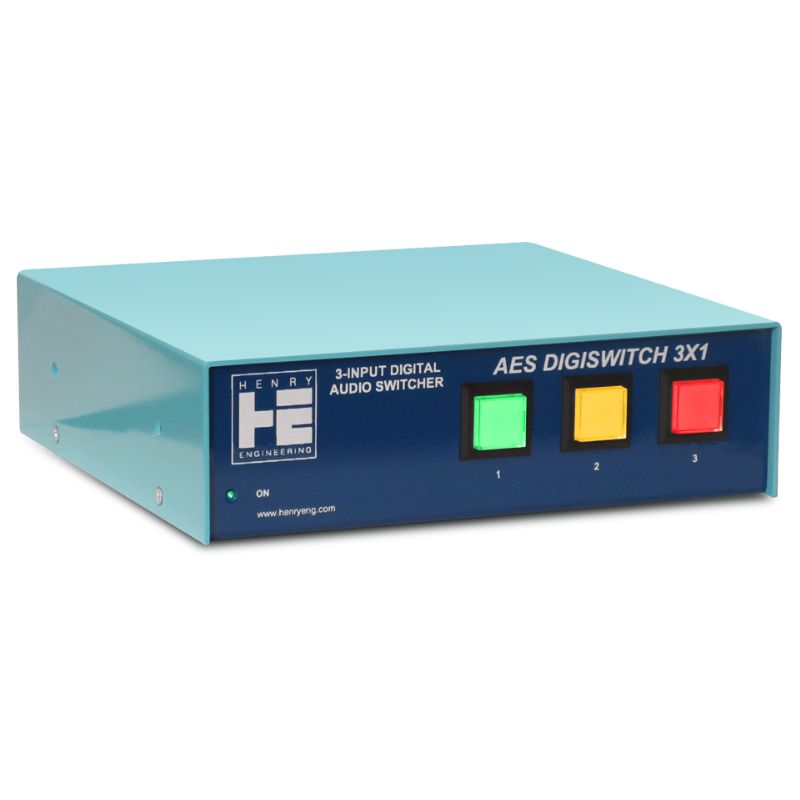

• AES DigiSwitch can be controlled with the illuminated pushbuttons on the front panel, and/or remotely controlled with any GPI contact closure, open collector, or DC voltage
• Power-up Programming permits the user to determine which of the inputs is automatically selected when AC power is applied

Specifications & Details

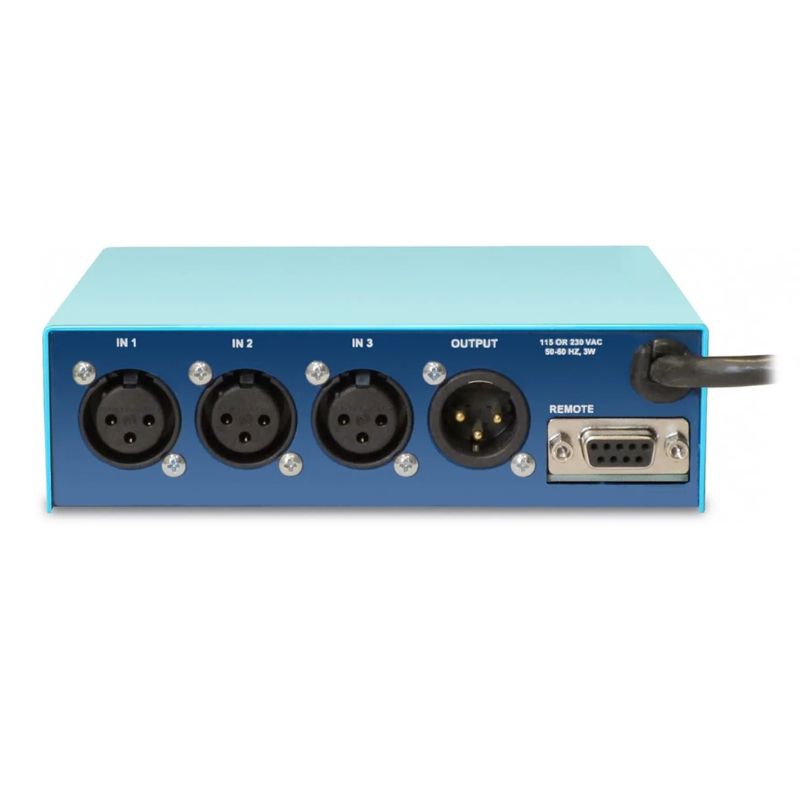

The Priority Return function can automatically select Input #1 if no other input is selected. Tally Outputs are provided to operate remote status LEDs. Inactive sources are automatically terminated. All AES I/O is via XLR connectors; Remote control is via a 9-pin D connector. The AES DigiSwitch 3X1 is 1/3 rack width and can be mounted in an optional rack shelf, or wall-mounted using optional wall/cabinet mounting brackets. The unit is powered with an internal AC power supply, which can be user-set for either 115 or 230 VAC mains.

Part number / SKU: HEN-AES-DIGISWITCH-3X1  ·  Manufacturer: HENRY ENGINEERING
