Blackmagic SDI Expander 8X12G

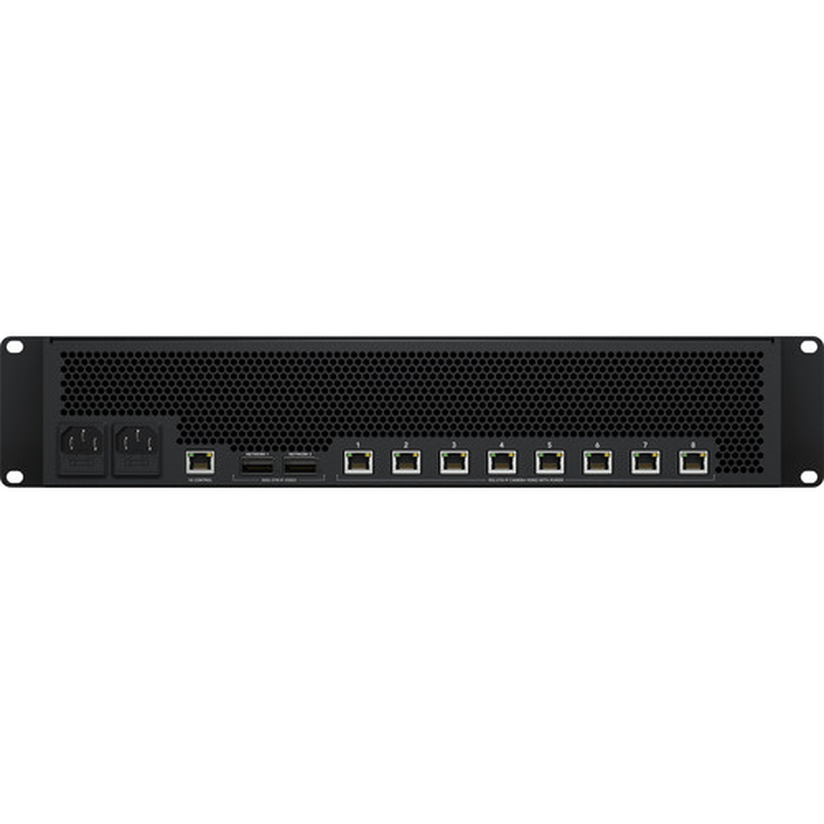

Blackmagic SDI Expander 8X12G - Image 2
Blackmagic SDI Expander 8X12G - Image 3

Blackmagic SDI Expander 8X12G

$3,295.00

The Blackmagic SDI Expander 8x12G is a massive, broadcast-grade bidirectional format converter designed to seamlessly bridge traditional 12G-SDI baseband infrastructure with ultra-high-bandwidth 100G Ethernet SMPTE-2110 IP networks. Housed in a compact 1RU chassis, this powerhouse can simultaneously convert 8 independent channels of 12G-SDI to IP while converting a separate set of 8 IP channels back to 12G-SDI, delivering an astonishing 16 channels of 4K60 routing in a single rack unit.

What makes this high-density expander indispensable for modern live production and facility integration is its incredible uncompressed processing and mission-critical reliability. Utilizing dual 100G QSFP28 connections, it provides full SMPTE-2022-7 hitless redundancy to prevent broadcast interruptions. Complete with a dedicated NMOS control port, a front-panel color LCD for instant video diagnostics, and dual redundant AC power supplies, it is the ultimate edge-device for normalizing massive volumes of camera feeds and untangling BNC cables in high-end IP broadcast facilities.

SKU: BMD-CONVNVIPP/EX10012G8 Category: Brand:

Description

The Blackmagic SDI Expander 8X12G is a production tool built for video production teams, broadcasters and streaming studios. Black Magic Design engineered it to deliver a faster, more reliable production workflow, day in and day out.

Key Features

  • <p>The Blackmagic Design SDI Expander 8x12G is a crucial infrastructure component all in a class of its own
  • This authentic OEM converter bridges that gap perfectly by acting as a high-density, 16-channel gateway
  • A quick intervention to route eight distinct Ultra HD baseband feeds onto a massive 100GbE network—while pulling eight return feeds back to local SDI monitors—has never been so incredibly efficient.</p&gt
  • <p>Top product performance is achieved thanks to strict adherence to the SMPTE ST-2110 standard combined with Blackmagic’s legendary video processing
  • The converter natively handles uncompressed SD, HD, and Ultra HD video up to 2160p60
  • It utilizes two massive 100G QSFP28 Ethernet ports, natively supporting SMPTE 2022-7 redundancy so that if one network switch fails, the broadcast continues without a dropped frame
  • <p>Engineered for the rigorous demands of premium 24/7 broadcast environments, the 1RU chassis replaces racks of messy BNC cables with a clean, centralized IP hub

Specifications & Details

The sophisticated front panel boasts a 2.2-inch color LCD display, built-in speaker, and physical spin knob, providing immediate visual and audio feedback for signal diagnostics without requiring an external computer.

Part number / SKU: BMD-CONVNVIPP/EX10012G8  ·  Manufacturer: Black Magic Design
